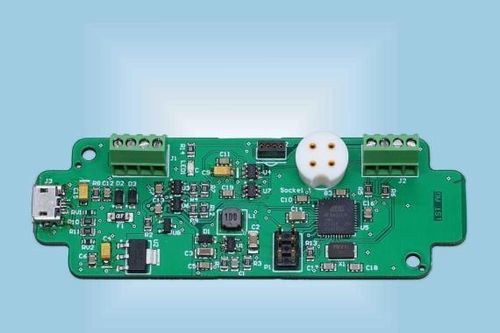

Evaluation board HYT

Overview
Testing and evaluation board for HYT humidity (RH/T) modules. Compatible with the full HYT RH/T product family; provides digital (I²C) and analog (0–10 V) outputs for relative humidity and temperature. Features HYT-specific connectors and an extension cable port for easy module connection.

Product details

• Product name: HYT Evaluation Board
• Product code: 151429
• Compatibility: all HYT RH/T modules
• Digital interface: USB (board to PC), I²C (board to sensor)
• Analog outputs: 0–10 V for humidity and temperature (per HYT calibration)
• Operating humidity range: < 95 % RH
• Operating temperature range: -20 °C to +50 °C
• Operating voltage: 5 V (USB) or 4 to 15 V DC
• Current consumption: 50 to 300 mA
• Dimensions: 29 x 84 mm (W x L)

Usage

• Testing and evaluation of HYT RH/T sensor modules
• Provides simultaneous digital and analog outputs for measurement logging and analysis
• Suitable for bench testing, sensor calibration and troubleshooting
• Connects to PC via USB for data acquisition; sensor communication via I²C

Technical specifications

• Operating humidity range: < 95 % RH
• Operating temperature range: -20 °C to +50 °C
• Digital interface: USB (board to PC), I²C (board to sensor)
• Analog outputs: 0–10 V (humidity and temperature) per HYT calibration
• Operating voltage: 5 V (USB) or 4–15 V DC
• Current consumption: 50–300 mA
• Dimensions: 29 x 84 mm (W x L)
• Product code: 151429
