swing clamp / hydraulic / vertical / double-acting

Add to MyDirectIndustry favorites
Compare this product
swing clamp / hydraulic / vertical / double-acting swing clamp / hydraulic / vertical / double-acting
{{requestButtons}}

Characteristics

  • Type:

    hydraulic

  • Other characteristics:

    swing, double-acting, vertical, single-acting

  • Applications:

    workpiece

  • Clamping force:

    Min.: 1.8 kN

    Max.: 21.2 kN

Description

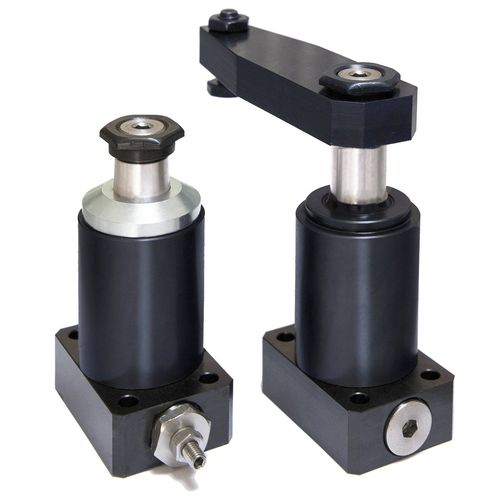

Standard-Schwenkspanner
Hydraulic, max. 350 bar, Single- and double acting

These swing clamps are offered as a superstructure version and can be operated by means of the lateral threaded connections as well as via drilled channels on the bottom side.
As Option: Metal scraper and throttling

These swing clamps are offered as superstructure version with different options.

With thread- and flange connection
Single- and double acting
Simple installation and mounting
Mounting position independent
With optional metal scraper
With optional throttling

Description:
These swing clamps are pull cylinders in which by
pressurization on the piston rod side, the rotational
movement of the piston is generated (swing stroke).
After the pivoting movement is completed, the actual
clamping stroke is initiated. Swivel and clamping stroke
result in the total stroke.
The swing clamps are offered as a superstructure
version and can be operated by means of the lateral
threaded connections as well as via drilled channels on
the bottom side.

Recommendations for use:
Hydraulic swing clamps are used to clamp workpieces those are requiring a high degree of freedom during loading and unloading.
When installing the clamping cylinders, the flange surfaces should be
adapted to the height of the workpiece.
These compact swing clamps are particularly suitable where no lateral
forces are shall be introduced.
The actual clamping point should be in the middle of the clamping
stroke.
If customer-supplied clamping arms are used, they should be
equipped with a thrust bolt or hardened on the clamping / support
surface.
