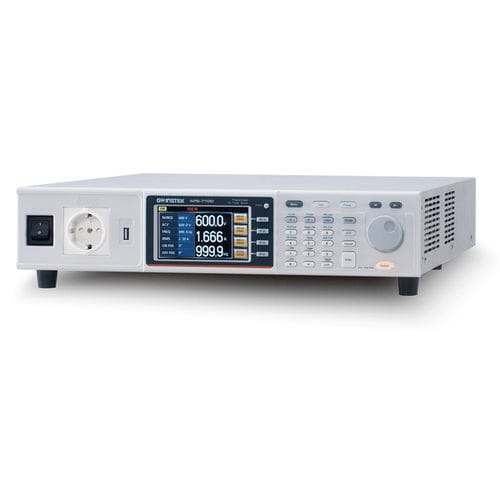

2U power supply APS-7000 series

AC/AC

4.3 inch TFT-LCD Display, Only 88mm(2U) case height Output Capacity: APS-7050(500VA), APS-7100 (1000VA) Arbitrary Waveform Function Surge/ Dip control for output artificial surges or dips in voltage to a DUT Measurement function comprises Voltage, Current, Power, Apparent Power, Current(peak), IPKH, Frequency, Power Factor, Crest Factor 10 sets of the Sequence mode, Simulate mode, and Programming mode 10 sets of Preset allow users to store ten settings Support Sequence, Simulate, and Program to automatically execute output after the equipment power is on Support SCPI Emulation, LabVIEW Driver Standard interface: USB Host, LAN Support remoter control: Sync Output, Program mode signal output, Trigger In/Out, Output on/off Option interface: GPIB (APS-001)；RS232/USB CDC (APS-002)
