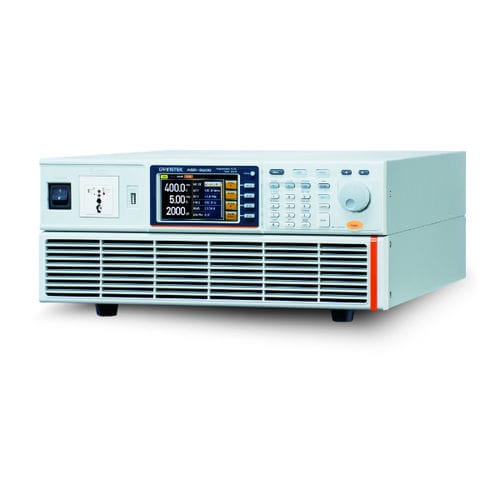

Tabletop power supply ASR-3000 Series

AC/ACAC/DCprogrammable

Features Output Rating: AC 0 – 400 Vrms, DC 0 - ± 570 V Output Frequency up to 999.9 Hz DC Output (100% of Rated Power) Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF Voltage and Current Harmonic Analysis(THDv, THDi) Remote Sensing Capability OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm. Support Arbitrary Waveform Function Output Capacity: 2kVA/ 3kVA/4kVA Customized Phase Angle for Output On/Off Sequence and Simulation Function(up to 10 sets) Interface(std): USB, LAN, RS-232, GPIB Built-in External Control I/O and External Signal Input Built-in Output Relay Control Memory Function (up to 10 sets) Built-in Web Server The ASR-3000 series is an AC+DC power source, featuring high-speed DC voltage rising and falling time (≦100us). ASR-3000 is ideal for the development of On-board Chargers, Server Powers, LED modules, AC Motors, AC Fans, UPS, and various electronic components, as well as for testing applications of automotive electrical equipment and home appliances. There are three models of the series: 1. ASR-3200(2kVA) 2. ASR-3300(3kVA) 3. ASR-3400(4kVA)
