Static torque sensor DC-Y2+ MICRA-M

High precise0-10 Vanalog

Description

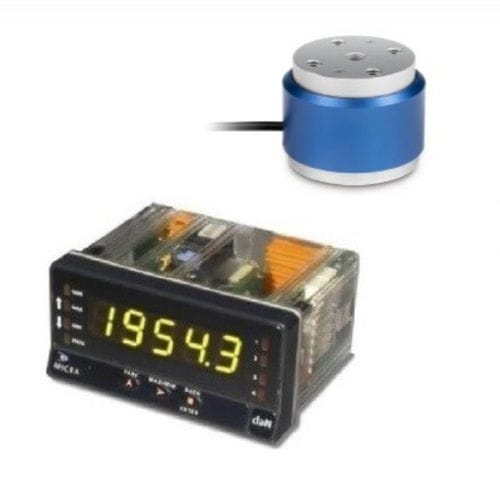

Static torque measurement instrument DC-Y2+ MICRA-M. Measurement range: 0–0.2 Nm … 0–50 Nm. Combined error: 0.3 % of full scale. RoHS compliant. Protected against dust and water jets (IP65). Suitable for monitoring or measuring static torques, installation on special machinery and laboratory testing. Nominal sensitivity: 1 mV/V. Maximum supply voltage: 15 V DC. 4-wire connection. High torsional stiffness. Other models and rated capacities available on request.

Associated indicator: MICRA M
The sensor + indicator assembly pairs the DC-Y2+ sensor with the MICRA M multifunction digital indicator. Basic unit composed of the base plate, programmable tricolor display and power supply. Basic functions: display of the input variable, remote hold, reading and storage of maximum and minimum values (peak/val), tare and reset functions, multiple programmable logic functions. Tricolor LED display (GREEN, ORANGE, RED) to indicate measurement status.

Accepted inputs and signals

• Load cells: mV/V, mV
• Process: ±10 VDC, ±20 mA, potentiometer
• Temperature: Pt100 probe, thermocouples types J, K and T

Outputs and options
Analog and digital outputs available as options (on request). Optionally delivered with COFRAC calibration certificate, COFRAC-equivalent certificate or COFRAC-traceable calibration.

Ergonomics and performance information
Indicator dimensions (mm): 96 x 48 x 60. Resolution: ±15 bits. Readings: 20/s.

Available ranges

• 0.2 Nm
• 1 Nm
• 10 Nm
• 20 Nm
• 50 Nm

Characteristics / Technical specifications

• Measuring range: 0–0.2 Nm … 0–50 Nm (variants: 0.2; 1; 10; 20; 50 Nm)
• Combined error: 0.3 % of full scale
• Protection rating: IP65
• Nominal sensitivity: 1 mV/V
• Sensor supply voltage: max. 15 V DC
• Connection: 4-wire
• High torsional stiffness
• MICRA M indicator - supply: 85–265 VAC / 100–300 VDC
• MICRA M indicator - dimensions (mm): 96 x 48 x 60
• MICRA M indicator - resolution: ±15 bits
• MICRA M indicator - reading rate: 20/s
• Accepted input signals: mV/V, mV, ±10 VDC, ±20 mA, potentiometer, Pt100, thermocouples J/K/T
• Outputs: analog and digital available as options
• Calibration options: COFRAC certificate or equivalent (optional)
• Environmental compliance: RoHS
