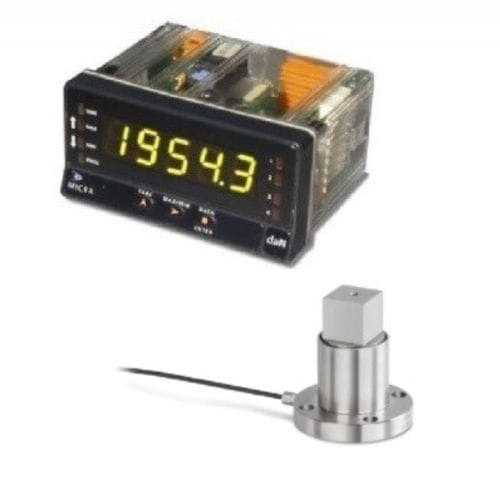

Static torque sensor DC-Y1 + MICRA-M

with square connectiondigitalanalog

Overview
Static torque measurement chain composed of the DC-Y1 sensor paired with the MICRA M multifunction digital display. Designed for monitoring and measuring static torques, testing manual torque wrenches and transmitting static torque loads.

Key functions
Measurement range: 0 to 5 Nm … 0 to 500 Nm
High accuracy: combined error 0.5 % of full scale
Simple and fast mounting
High torsional stiffness
Nominal sensitivity: 1.0 ~ 1.5 mV/V (depending on rated load)
4‑wire connection

MICRA M display (paired)
Multifunction configurable digital display. Basic kit includes mounting plate, programmable tricolour display and power supply.
Visualization functions, remote hold, max/min value reading and storage (peak/val), tare and reset, multiple programmable logic functions.
TRICOLOR LED display (GREEN / ORANGE / RED) for status indication or measurement-type differentiation.

Accepted inputs and signals

• Load cells: mV/V, mV
• Process: ±10 Vdc, ±20 mA, potentiometer
• Temperature: Pt100 probe, thermocouples types J, K and T

Outputs and options
Analog and digital outputs available as options (on request). RS232 / RS485 digital outputs available depending on configuration.

Power supply and electronic characteristics
Power supply: 85–265 Vac / 100–300 Vdc
Format (mm): 96 x 48 x 60
Resolution: ±15 bits
Readings: 20/s

Available ranges table
Ranges
5 Nm, 10 Nm, 20 Nm, 50 Nm, 100 Nm, 200 Nm, 500 Nm

Calibration certificate
Optional delivery with COFRAC calibration certificate, COFRAC-equivalent or COFRAC-affiliated certificate (on request).

Characteristics / technical specifications

• Measurement range: 0 to 5 Nm … 0 to 500 Nm (variants: 5, 10, 20, 50, 100, 200, 500 Nm)
• Accuracy: combined error 0.5 % of full scale
• Nominal sensitivity: 1.0 ~ 1.5 mV/V (depending on load)
• Connection: 4 wires
• Mounting: simple and quick
• Rigidity: high torsional stiffness
• Associated display: MICRA M (multifunction digital display)
• Power supply (display and sensor): 85–265 Vac / 100–300 Vdc
• Display format: 96 x 48 x 60 mm
• Resolution: ±15 bits
• Sampling rate: 20 readings/s
• Accepted inputs: mV/V, mV, ±10 V, ±20 mA, potentiometer, Pt100, thermocouples J/K/T
• Outputs: analog and digital options (RS232/RS485 available on request)
• Option: COFRAC calibration certificate or equivalent (on request)
