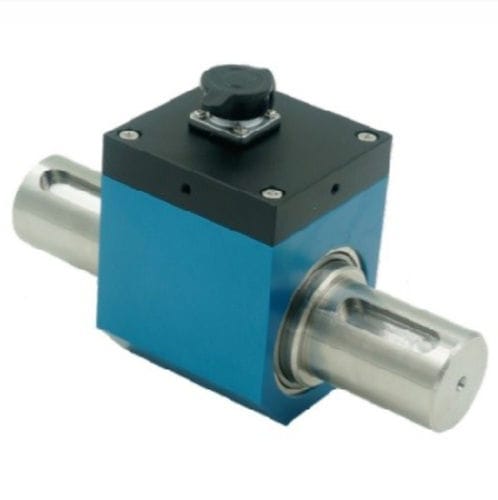

Rotary torque sensor DT-908-Adynamicflange-to-flangeanalog
Add to favorites
Compare this product
Characteristics
- Type
- dynamic, rotary
- Configuration
- flange-to-flange
- Output
- analog, voltage output
- Supply voltage
- 12VDC, 15VDC
- Protection level
- IP65
- Other characteristics
- strain gauge, high-accuracy
- Torque
Min.: 0.1 Nm
(0.07 ft.lb)Max.: 500 Nm
(368.78 ft.lb)- Precision
0.2 %
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 4,000 rpm
(25,133 rad.min-1)- Overload limit
Min.: 120 %
Max.: 150 %
Description
Presentation
Dynamic rotary torque transducer DT-908-A designed for industrial torque measurement up to 500 Nm.
Key features
Available capacity ranges
Output & interface
Technical specifications
Dynamic rotary torque transducer DT-908-A designed for industrial torque measurement up to 500 Nm.
Key features
- Measurement range: 0.1 Nm … 500 Nm (see available capacities)
- High stability
- Excellent linearity: 0.2% of full scale
- Rated sensitivity: 1 to 1.5 ±20% mV/V (values indicated on the datasheet)
- Maximum speed: up to 4000 rpm
- Ingress protection: IP65
Available capacity ranges
- 0.1 / 0.2 / 0.3 / 0.5 / 1 / 2 / 3 / 5 / 10 / 20 / 30 / 50 / 100 / 200 / 300 / 500 Nm
Output & interface
- Analog bridge output (strain-gauge)
- Sensitivity: 1 to 1.5 ±20% mV/V
Technical specifications
- Capacity: 0.1 / 0.2 / 0.3 / 0.5 / 1 / 2 / 3 / 5 / 10 / 20 / 30 / 50 / 100 / 200 / 300 / 500 Nm
- Sensitivity: 1 to 1.5 ±20% mV/V
- Offset: ±1% of full scale
- Non-linearity: 0.2% of full scale
- Hysteresis: 0.2% of full scale
- Repeatability: 0.1% of full scale
- Creep (30 min): 0.1% of full scale
- Temperature effect on output: 0.02% of full scale / 10°C
- Temperature effect on zero: 0.02% of full scale / 10°C
- Input resistance: 350 / 700 ±10 Ω
- Output resistance: 350 / 700 ±10 Ω
- Insulation: ≥5000 MΩ / 100 Vdc
- Recommended supply voltage: 12 V
- Maximum supply voltage: 15 V
- Temperature compensation range: -10 to 60°C
- Operating temperature: -20 to 60°C
- Safe load limit: 120% of full scale
- Breakage load: 150% of full scale
- Cable length: 3000 mm
- Ingress protection: IP65
