XYZ positioning stage / motorized / 3-axis / precision

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
XYZ positioning stage XYZ positioning stage
  • XYZ positioning stage
{{requestButtons}}

Characteristics

  • Orientation:

    XYZ

  • Type:

    motorized

  • Number of axes:

    3-axis

  • Other characteristics:

    precision, high-speed

  • Stroke :

    Max.: 3,000 mm (9.843 in)

    Min.: 100 mm (3.937 in)

  • Speed:

    Max.: 3,000 mm/s (9.842519685 ft/s)

    Min.: 100 mm/s

Description

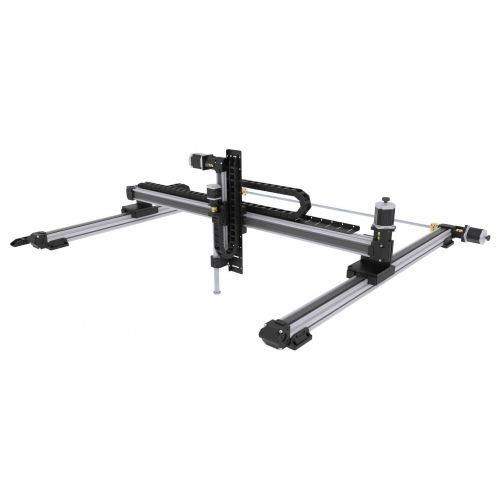

Gantry style cartesian robots with large working areas. All moving axes located above work area.

- Synchronized XY Gantry
- Travel to 3 x 3 m
- Stepper or servo motor drive
- On-axis repeatability 50 microns
- Motorized belt mechanism
