XYZ positioning system BEMA-W60-1000X1000X220X360
verticalrotaryfor robots

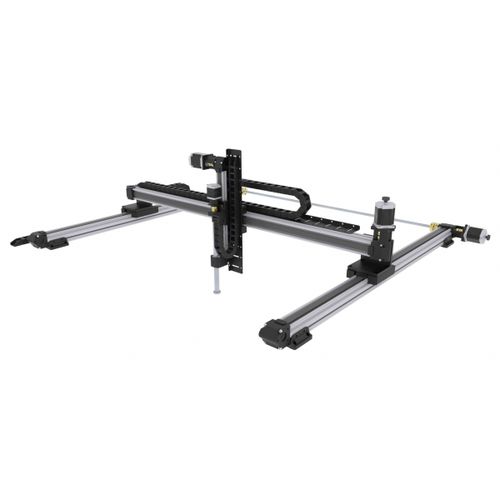

XYZ positioning system - BEMA-W60-1000X1000X220X360 - IntelLiDrives, Inc. - vertical / rotary / for robots
XYZ positioning system - BEMA-W60-1000X1000X220X360 - IntelLiDrives, Inc. - vertical / rotary / for robots
XYZ positioning system - BEMA-W60-1000X1000X220X360 - IntelLiDrives, Inc. - vertical / rotary / for robots - image - 2
XYZ positioning system - BEMA-W60-1000X1000X220X360 - IntelLiDrives, Inc. - vertical / rotary / for robots - image - 3
Add to favorites
Compare this product
Go to the IntelLiDrives, Inc. website for more information

Characteristics

Number of axes
XYZ
Features
vertical, rotary
Applications
for robots
Other characteristics
servo controlled, synchronized

Description

Four Axes Gantry (XYZR) style cartesian robots with large working areas. All moving axes located above working area. - Synchronized XYR Gantry - Rotary axis - Stroke 1000x1000x300 mm - Rotation 360 deg - Stepper or servo motor drive (XYZ) - On-axis repeatability 50 microns - Motorized belt mechanism (XYZ) - Load 3 Kg
