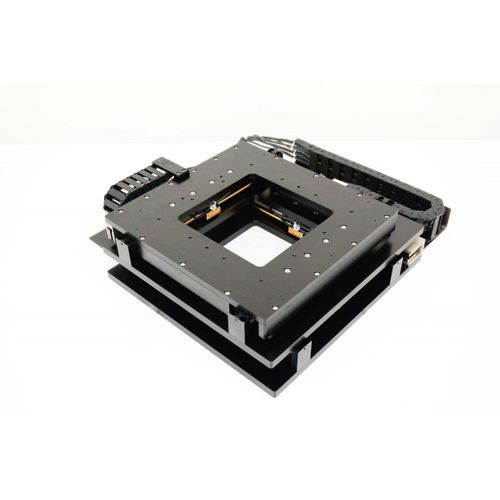

XY stage XY-OF1-UL-200x200-LM-PO

linear motor-driven2-axisprecision

An open-frame XY stages designed with a low profile for a wide range of automated accurate positioning applications. The linear motor drive mechanism located on the side of the unit and offers a clear unobstructed two axes aperture to enable light or objects to pass through the center of travel. XY table fitted with precision linear encoders 1micron resolution Stroke XY : mm 200x200 Aperture : mm 200x200 Table top : mm 380x380 Height : mm 140 Accuracy : micron 10 Backlash : micron 0 (linear motor/encoder) Straightness : micron 10 Resolution : micron 0.5; 1.0 Motor type : Linear motor/encoder (option) Repeatability : micron 1 (linear motor/encoder) Load capacity : kg 10 Table weight : kg 15 Max speed : mm/sec 600 (linear motor)
