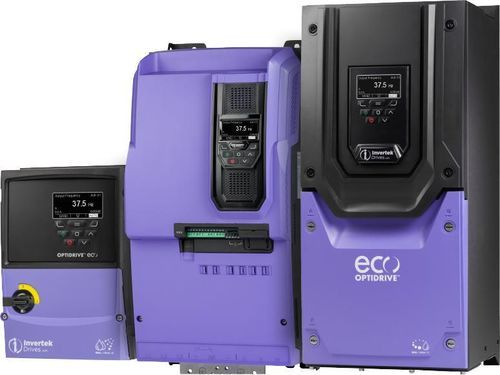

Pump control unit for stand-alone applications Optidrive Eco™

with alarm functionfor pump managementwith pump auto-reset

Overview
Optidrive Eco provides a compact, application-specific variable frequency drive (VFD) solution for pump stations, enabling flexible multi-pump control without the need for PLCs or separate pump controllers. Designed to simplify installation and operation, it delivers centralized control, rapid commissioning and energy-efficient variable-speed operation for up to five pumps.

Optiflow (Total Control)

• A single Master drive manages and monitors system operation; control interfaces are connected to the Master only.
• Slave drives connect via a single RJ45 link and require minimal commissioning, reducing installation time and wiring complexity.
• Supports up to five pumps in any configuration (Duty / Assist / Standby) with automatic duty rotation to equalize run-time and maximise equipment life and efficiency.

Key Benefits

• Stable pressure and flow regardless of the number of pumps running; additional pumps auto-start as demand rises and stop when not required.
• Automatic reconfiguration in case of pump or drive faults, including Master pump failure, to maintain service.
• System remains operational when individual drives are powered down; the Master can be isolated without disrupting Slave operation.

Avoid Pump Downtime

• Blockage detect/clear: detects blockages and can trigger configurable cleaning/de-ragging cycles to clear obstructions automatically.
• Dry-run protection: monitors speed/power to warn or shut down the pump when running dry, preventing damage.
• Motor preheat function: configurable preheating to prevent condensation during inactivity and immediately after stop.
• Pump stir cycle: configurable agitation/cleaning cycles triggered after periods of inactivity to remove sediment.

Drive Controlled Bypass
The drive can operate as an intelligent bypass controller within a bypass circuit. Bypass mode can be activated by building management commands or automatically selected on trip conditions to minimise service disruption.

Pump Prime with Burst Pipe Protection
Prime mode provides controlled starts to ensure correct filling and pressurisation of pipework. Low-pressure alarms are ignored during priming but a failsafe timeout prevents continuous running if priming fails. During normal operation the drive monitors minimum pressure and will trip on sustained low-pressure events (e.g. burst pipe).

Pump Control Features

• Variable-speed operation across all drives for maximum energy savings.
• Equal run-time sharing between pumps via automatic duty rotation.
• Automatic system reconfiguration in the event of pump or drive faults (including Master).
• Continued operation when individual drives are powered off, including safe isolation of the Master.
• Inter-drive communication and shared +24V control supply via standard RJ45 patch lead.
• Independent maintenance indicators for each pump to support service planning.
• Individual pumps can be set to Hand (manual) operation and automatically rejoin network when returned to Auto.
• For wastewater applications, each pump supports blockage/ragging detection and automatic de-ragging cycles.
• Optional mains isolator with lock-off for safe maintenance.
• Optiflow configured through simple parameter setup and intelligent drive self-configuration for rapid commissioning.

Technical specifications

• Series / Model family: Optidrive Eco
• Multi-pump control via Optiflow supporting up to 5 pumps
• Master/Slave topology with single-point control to Master
• Inter-drive communication via standard RJ45 (also shares +24V control voltage)
• Variable-speed operation for energy efficiency
• Automatic duty rotation for equal run-time sharing
• Blockage detection and programmable cleaning/de-ragging cycles
• Dry-run protection (speed/power evaluation)
• Motor preheat function (configurable)
• Pump stir/clean cycles based on inactivity timer
• Drive-controlled bypass mode with intelligent activation and trip-based automatic bypass selection
• Pump prime mode with failsafe timeout and low-pressure monitoring
• Independent maintenance indicators per pump; ability to operate when individual drives are powered off
• Optional mains isolator with lock-off for maintenance
