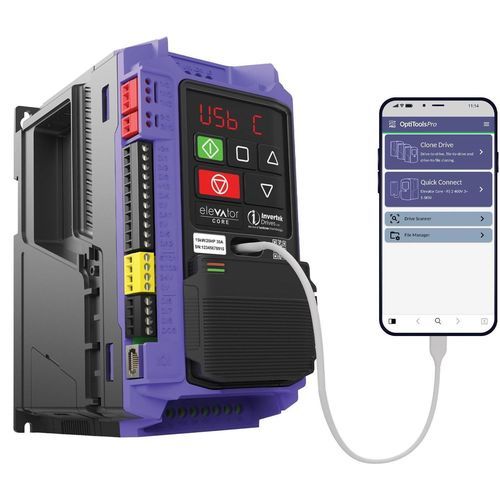

Single-phase frequency inverter

side-mountfor electrical control panelsfor elevators

Overview
The Optidrive Elevator Core variable frequency drive is engineered as a dedicated elevator drive, with a power stage and control features optimised for lift applications. It has been designed and tested to withstand the environmental and load conditions typical of the elevator industry. Invertek’s Innovation Centre provides specialised motor test rigs, dynamometers and lift simulators to support product development, testing and training.

Main features

• Advanced elevator control algorithms tailored for lift operation
• USB-C iConnect for drive programming and analysis without mains power or specialist connections
• Integrated flight recorder storing key elevator travel and event data
• High power density and compact footprint for retrofit into control panels
• Flexible mounting: front and side options
• Ruggedised design and tested for elevator environmental and load conditions
• Manufactured in the UK to ISO 9001 and ISO 14001 standards
• Up to 5-year warranty available

Drive ratings / key electrical data
Input voltage: 200–480 V — single & 3‑phase compatible
Power range: 2.2–22 kW (3–30 HP)

Applications & support
Application-specific elevator drive for retrofit and new lift installations. Backed by product training, elevator motor test rigs and lift simulation facilities for commissioning and validation.

Technical specifications

• Model family: Optidrive Elevator Core
• Input voltage range: 200–480 V
• Input phases: Single and 3‑phase compatible
• Power output range: 2.2–22 kW (3–30 HP)
• Programming interface: USB‑C iConnect
• Event data: Integrated flight recorder (stores travel/event data)
• Mounting: Front and side mounting options
• Design emphasis: Dedicated elevator power stage and ruggedised components
• Certifications: CE, CULUS, RCM, UKCA, TUV
• Manufacturing: Designed and manufactured in the UK
• Warranty: Up to 5-year warranty available
