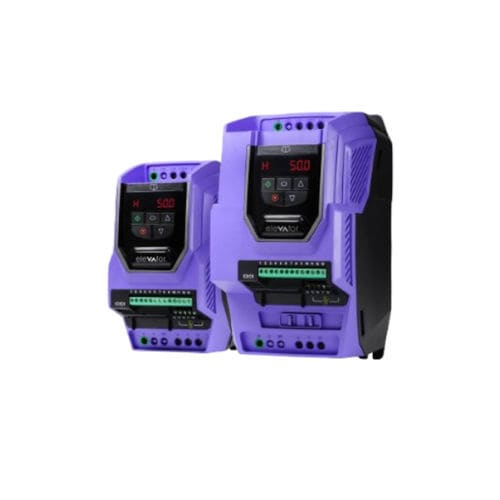

Single-phase frequency inverter

for electrical control panelsIP20compact

Overview
Optidrive Elevator is a compact variable frequency drive designed for lift and elevator applications. It belongs to the Optidrive Elevator product family and is engineered for installation in space-constrained control panels.

Key Features

• Supply voltage range: 200–480 V
• Single- & three-phase input
• Output power: 0.75–37 kW (1–50 HP)
• Compact form factor suitable for elevator control cabinets
• Available documentation: brochures, user guides, quick start guides, CAD drawings, certificates

Downloads (examples)
Name — Language — File Type
Optidrive Elevator Brochure — English — PDF
Elevator Case Study Booklet — English — PDF
Elevator User Guide — English — PDF
Elevator Quick Start Guide / Optidrive P2 Elevator User Guide — English — PDF
CE Declaration of Conformity - Optidrive Elevator — English — PDF
EN 81-20 Certificate — English — PDF
UKCA Declaration of Conformity - Optidrive Elevator — English — PDF

Additional Resources

• CAD drawings for IP20 sizes: Size 2, Size 3, Size 4, Size 5
• Case studies and application literature for elevator installations

Technical specifications

• Supply voltage: 200–480 V
• Input phases: Single & 3 phase
• Output power: 0.75–37 kW (1–50 HP)
• Product family: Optidrive Elevator
• Available CAD enclosure sizes: IP20 sizes 2–5
• Documentation: Brochure, User Guide, Quick Start Guide, Certificates (CE, UKCA, EN 81-20)
