alcohol hose / heavy-duty / plastic / flexible
BACCO FF

{{requestButtons}}

Characteristics

  • Use:

    alcohol

  • Applications:

    heavy-duty

  • Material:

    plastic

  • Other characteristics:

    flexible, smooth, chemical-resistant, anti-static, hydrolysis-resistant, translucent, spiral

  • Inner diameter:

    Max.: 152.8 mm

    Min.: 19 mm

  • Outer diameter:

    Max.: 173.4 mm

    Min.: 25.4 mm

  • Pressure:

    Max.: 9 bar (130.534 psi)

    Min.: 4 bar (58.015 psi)

  • Temperature:

    Max.: 60 °C (140 °F)

    Min.: -10 °C (14 °F)

Description

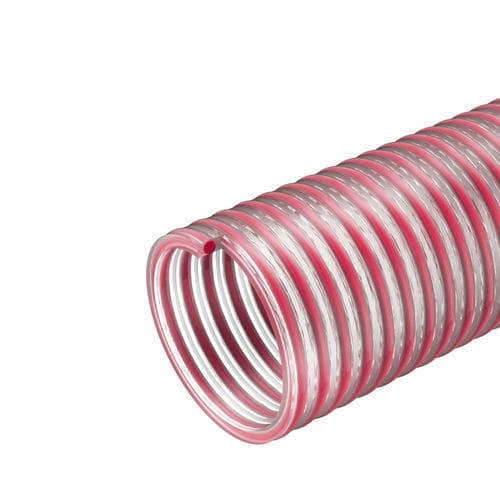

COLOR:
Transparent, red plastic spiral
FEATURES
hose made with plasticized vinylic compound reinforced with PVC spiral, smooth inside, for heavy duty thus flexible. Resistance to loads, atmospherical agents and to a wide range of chemicals. Resistance to hydrolysis.
Tube features: food grade hose wall completely free of phthalates, to eliminate leaching risk of those components into the delivered substances. The hard plastic spiral is as well food grade, making Bacco FF a total food hose. Antistatic version available upon request.
Standards: Food grade according to EU Regulation n° 10/2011 (classes A, B, C, D1 and dry food)

APPLICATION:
ideal solution for suction and delivery of beverages with alcohol concentration up to 50%. Suggested for wines, marcs, liquors and other beverages and food liquids. See recommendations for technical suitability.
