Food-grade hose PLUTONE A
alcoholbeveragePVC

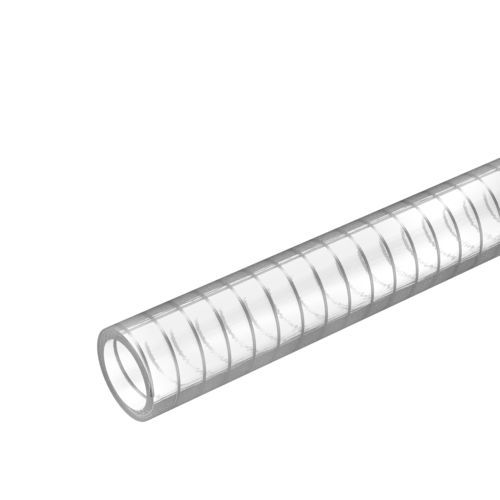

Food-grade hose - PLUTONE A - IPL SPA - alcohol / beverage / PVC
Food-grade hose - PLUTONE A - IPL SPA - alcohol / beverage / PVC
Food-grade hose - PLUTONE A - IPL SPA - alcohol / beverage / PVC - image - 2
Food-grade hose - PLUTONE A - IPL SPA - alcohol / beverage / PVC - image - 3
Add to favorites
Compare this product

Characteristics

Use
alcohol, beverage
Material
PVC
Applications
suction, transport, discharge, transfer, food, food-grade, for agricultural applications, dosing
Other characteristics
flexible, chemical-resistant, weather-resistant, with smooth inner surface, reinforced, spiral wire
Inner diameter

Max.: 151 mm
(5.945 in)

Min.: 6 mm
(0.236 in)

Outer diameter

Max.: 168.6 mm
(6.638 in)

Min.: 12.2 mm
(0.48 in)

Pressure

Max.: 5 bar
(72.519 psi)

Min.: 1.2 bar
(17.405 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Delivered length

20 m, 30 m, 60 m
(65'07" , 98'05" , 196'10" )

Description

Color: Transparent with steel reinforcement spiral Features: flexible hose produced with PVC and reinforced with steel spiral. Smooth inside to enhance the flow properties and to allow an easy cleaning after use. Clear wall for an easy detection of the media transferred. Resistant to several chemicals and to weather conditions. It can be conductive (R<102 Ohm/m) by grounding the spiral. Suitable to deliver foodstuffs according to Reg. EU 10/2011 (classes A,B, C) Application: ideal solution for suction and delivery of food liquids, beverages, fruit juices, wine and liquors with up to 20% alcohol concentration. It is often used for filling machines and dispensers.
