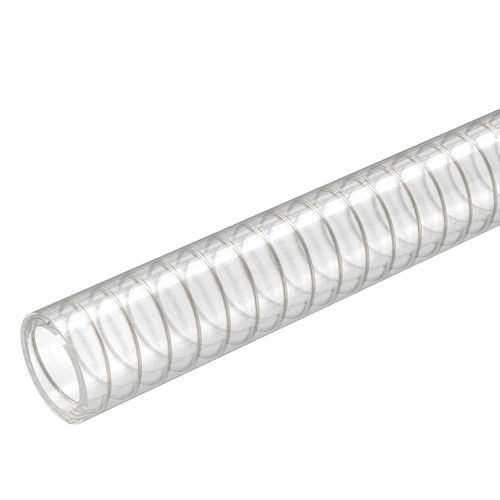

Foodstuff hose PLUTONE PU
for abrasive productsfor powdersTPU

Foodstuff hose - PLUTONE PU - IPL SPA - for abrasive products / for powders / TPU
Foodstuff hose - PLUTONE PU - IPL SPA - for abrasive products / for powders / TPU
Foodstuff hose - PLUTONE PU - IPL SPA - for abrasive products / for powders / TPU - image - 2
Foodstuff hose - PLUTONE PU - IPL SPA - for abrasive products / for powders / TPU - image - 3
Add to favorites
Compare this product

Characteristics

Use
foodstuff, for abrasive products, for powders
Material
TPU
Applications
suction, transfer, cleaning, for chemical applications, FDA, for the pharmaceutical industry, for medical applications
Other characteristics
flexible, smooth, chemical-resistant, oil-resistant, microbe-resistant, transparent, extruded, seamless, spiral wire
Inner diameter

Min.: 8 mm
(0.315 in)

Max.: 76 mm
(2.992 in)

Outer diameter

Min.: 14.2 mm
(0.559 in)

Max.: 88.2 mm
(3.472 in)

Pressure

1.5 bar, 2 bar, 2.5 bar
(21.756 psi, 29.008 psi, 36.259 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 90 °C
(194 °F)

Delivered length

30 m, 60 m
(98'05" , 196'10" )

Description

flexible hose made from ether-based TPU with AISI 302 stainless steel spiral . inside and outside completely smooth to enhance flow properties and allow easy cleaning and sterilization processes. It can be electrically bonded by grounding the spiral The extruded, low porosity TPU tube reduces permeation problems. Highly neutral in taste and odor, it preserves the organoleptic properties of the medium. Very good chemical resistance to acids and alkaline solutions and good impermeability. Versatile rubber resistant also to oils and fats under common use conditions. Without halogens. Curing-free material: Plutone PU does not need any vulcanization process, therefore it prevents the risk of leaching of curing agent residues into the end product (peroxide or platinum volatile rests). It allows to save energy sources and limit CO2 emissions Standards: Food grade according to the EU Regulation 10/2011 (classes A,B,C, D2 and dry food) , FDA regulations (Title 21 CFR 177.2600, classes D,E,F) APPLICATION: suction of powders and high abrasive granules. Ideal solution to convey pharmaceutical and cosmetic powders, pills, tablets of medicines; for food flours and grains, sugar, salt, dry fruit. Ideal solution to transfer olive oil and fatty food. Suitable also for food, pharmaceutical and cosmetic liquids with alcohol concentration up to max 20%.
