Beverage hose PLUTONE PU PRESS
for bulk materialsfor powdersTPU

beverage hose
beverage hose
beverage hose
beverage hose
Add to favorites
Compare this product


Characteristics

Use
beverage, for bulk materials, for powders
Material
TPU, with polyester reinforcement
Applications
discharge, suction, transport, transfer, for vacuum, food, conveying, for pharmaceutical applications, food-grade, for the food industry, for medical applications
Other characteristics
weather-resistant, flexible, abrasion-resistant, wire-reinforced, stainless steel spiral, chemical-resistant, smooth, reinforced, for abrasive fluids, oil-resistant, translucent, microbe-resistant, for bulk materials, transparent, hydrolysis-resistant, braided, vacuum, for abrasive products, extruded, for dry bulk materials, for high-purity fluids
Inner diameter

Max.: 51 mm
(2.008 in)

Min.: 13 mm
(0.512 in)

Outer diameter

Max.: 65 mm
(2.559 in)

Min.: 23.5 mm
(0.925 in)

Pressure

Max.: 19 bar
(275.572 psi)

Min.: 8 bar
(116.03 psi)

Temperature

Max.: 90 °C
(194 °F)

Min.: -40 °C
(-40 °F)

Delivered length

30 m, 60 m
(98'05" , 196'10" )

Description

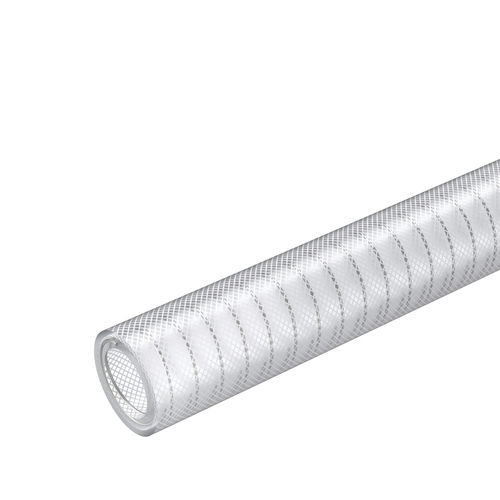

COLOR: Transparent FEATURES flexible hose made from ether-based hygienic TPU with AISI 302 stainless steel spiral and polyester reinforcement. Inside and outside completely smooth to enhance flow properties and allow easy cleaning and sterilization processes. It can be electrically bonded by grounding the spiral The extruded, low porosity TPU tube reduces permeation problems. Highly neutral in taste and odor, it preserves the organoleptic properties of the medium. Very good chemical resistance to acids and alkaline solutions and good impermeability. Versatile rubber resistant also to oils and fats under common use conditions. Without halogens. Cover features: excellent resistance to ozone, ageing and weather condition. Curing-free material: Plutone PU Press does not need any vulcanization process, therefore it prevents the risk of leaching of curing agent residues into the end product (peroxide or platinum volatile rests). It allows to save energy sources and limit Co2 emissions. Standards: Food grade according to EU 10/2011 (classes A, B, C, D2 and dry food) and FDA regulations (Title 21 CFR 177.2600, classes D, E, F). Compliant with the pharmaceutical standard USP CLASS VI. APPLICATION: suction and delivery of powders and high abrasive granules. Ideal solution to convey pharmaceutical and cosmetic powders, pills, tablets of medicines; for food flours and grains, sugar, salt, dry fruit. Suitable also for food, pharmaceutical and cosmetic liquids with alcohol concentration of max 20%. See recommendations for technical suitability
