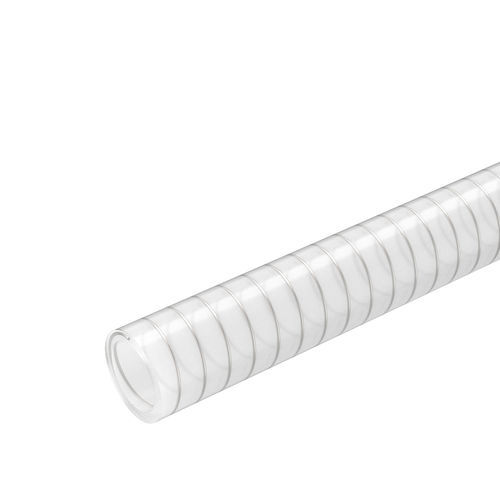

Hose for pharmaceutical applications PHARMASTEEL
for chemical productsalcoholbeverage

hose for pharmaceutical applications
hose for pharmaceutical applications
hose for pharmaceutical applications
hose for pharmaceutical applications
Add to favorites
Compare this product


for chemical products, alcohol, beverage
for pharmaceutical applications, food-grade
Other characteristics
flexible, chemical-resistant, smooth, oil-resistant, translucent, microbe-resistant, hydrolysis-resistant, reinforced, stainless steel spiral
Inner diameter

Min.: 10 mm (0.394 in)

Max.: 51 mm (2.008 in)

Outer diameter

Min.: 16 mm (0.63 in)

Max.: 61 mm (2.402 in)


1 bar, 1.3 bar, 1.5 bar (14.504 psi)


Min.: -30 °C (-22 °F)

Max.: 100 °C (212 °F)

Delivered length

30 m, 60 m (98'05")


Color: Translucent Diameter range: 10x16-51x61 Features: Flexible hose made from TPE-S hygienic rubber reinforced by AISI 302 stainless steel spiral. Inside and outside completely smooth to enhance flow properties and allow easy cleaning and sterilization processes. Highly neutral in taste and odor, it preserves the organoleptic properties of the medium. Resistant to hydrolysis and proliferation of bacteria. Curing-free material: Pharmasteel does not need any vulcanization process, therefore it prevents the risk of leaching of curing agent residues into the end product (peroxide or platinum volatile rests). It allows to save energy sources and limit Co2 emissions. Good chemical resistance to acids and alkaline solutions and good impermeability. Versatile rubber resistant also to oils and fats under common use conditions. Excellent resistance to ozone, ageing and weather condition. Food grade according to the EU Regulation n° 10/2011 (classes A, B, C, D1, D2), FDA Regulations (Title 21 CFR 177.2600, classes D and E). Compliant with the pharmaceutical standards USP CLASS VI. Application: versatile suction and delivery hose designed to convey food, cosmetic, health care and pharmaceutical products. Suitable for a manifold range of media such as premium wines, fruit juices, vinegar, spirits with alcoholic content up to 96%, creams, soaps, milk and by-products; also resistant to products containing oils and fats in accordance with EU Regulation n° 10/2011.
