Media converter iSC2F
optical fiberserialRS422

media converter
media converter
Add to favorites
Compare this product


Characteristics

Type
media
Bus
optical fiber, serial, RS422

Description

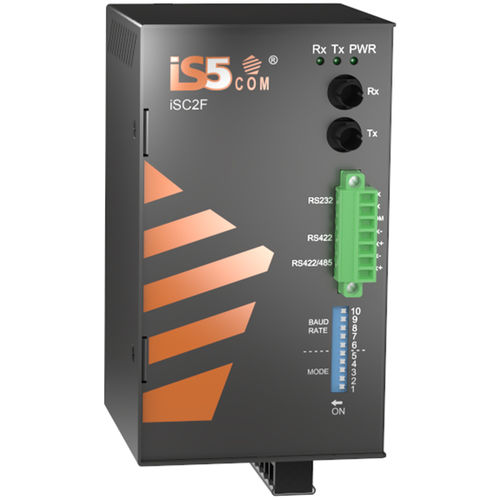

iSC2F The iSC2F is a cost-effective Single Serial Media Converter solution for the conversion between Serial RS-232/RS485/RS422 interfaces over optical fiber. The iSC2F has been designed to be fully compliant with the standards of IEC 61850-3 and IEEE 1613. The iSC2F Series accepts a wide input voltage range from dual 10-36VDC or 36-72VDC power inputs to a single input 88-370VDC or 85-264VAC, so it is suitable for harsh operating environments. These features combined with a wide operating temperature of -40°C to +85°C, helps protect missioncritical applications from network interruptions or temporary malfunctions.

Catalogs

iSC2F
iSC2F
7 Pages
iS5
iS5
80 Pages
