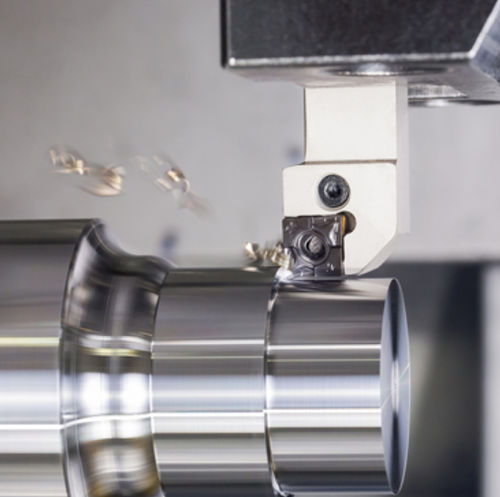

Positive turning insert LOGIQ4TURN

double-sided

An advantageous alternative to the conventional ISO ISCAR doubles the cutting edges on positive rake inserts intended for general turning applications. This economical solution for 80 degree turning provides double-sided robust and positive 4 cutting-edged inserts that easily replace the positive 2 cutting edged inserts. Their dovetail shape fits into a unique pocket design, assuring better insert positioning and stability to guarantee longer insert tool life. The holders can be ordered with or without through-tool coolant channels. Insert Features The new double-sided CXMG inserts operate similarly to CCMT positive inserts and can therefore replace standard CCMT inserts. In some applications, they can also replace standard negative CNMG inserts. Double-sided with a positive flank Low cutting forces Designed with a chipformer for general turning applications Tool Features Lever lock insert clamping system Very effective JHP (Jet High Pressure) coolant nozzles directed to the cutting edge for increased tool life, improved chip control and high productivity The positive insert flank enables a dove-tailed pocket design for very firm insert clamping
