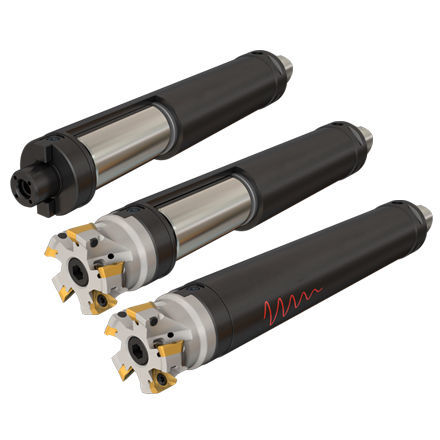

Anti-vibration mount WHISPERLINE

Product Overview
WHISPERLINE is a built-in absorber designed to reduce chattering in deep milling applications. It is suitable for long reach up to 6XD for both roughing and finishing and can be fitted to machine spindles using the ISCAR CAMFIX modular system.

Performance and Benefits

• Reduces chattering and vibrations in deep milling operations.
• Suitable for long reach up to 6XD for both roughing and finishing.
• Improves surface finish and extends tool life.
• Provides internal coolant directed to the cutting edge in deep milling applications.
• Damping mechanism can enable higher productivity — up to 3× compared to classic long holders in damping‑limited applications.

Compatibility & Installation

• Designed for machine spindles using ISCAR CAMFIX modular system (ISO 26623-1 exchangeable tapered shanks supported).
• Compatible with various shellmill cutter families and modular toolholding components to achieve long‑overhang damping.

Applications

• Deep cavity milling and machining of features with large L/D ratios.
• Long‑overhang milling where vibration/chatter reduction improves productivity and surface quality.

Image Gallery

• WHISPER_LINE_Ads_Pic.jpg (main campaign image)
• WHISPER_LINE_FlexibleMillAntiVibration_D.jpg
• WHISPER_LINE_App_3.jpg
• WHISPER_LINE_FlexibleMillAntiVibration_All.jpg

Related Product Family (selection of family items and main dimensions)
Designation | DCONMS | DCONWS | BD | LSCWS | LB | LF | CRKS | DCP | Weight (kg)
AV C5 SEM16 38X200 | 50.00 | 16.00 | 38.00 | 17.00 | 180.0 | 200.00 | M16 | 1 - Slot for data chip | 2.40
AV C5 SEM22 48X220 | 50.00 | 22.00 | 48.00 | 19.00 | 200.0 | 220.00 | M16 | 1 | 3.80
AV C5 SEM22 48X270 | 50.00 | 22.00 | 48.00 | 19.00 | 250.0 | 270.00 | M16 | 1 | 4.70
AV C6 SEM22 48X270 | 63.00 | 22.00 | 48.00 | 19.00 | 248.0 | 270.00 | M20 | 1 | 4.60
AV C6 SEM22 61X260 | 63.00 | 22.00 | 61.00 | 19.00 | 238.0 | 260.00 | M20 | 1 | 7.50
AV C6 SEM22 61X310 | 63.00 | 22.00 | 61.00 | 19.00 | 288.0 | 310.00 | M20 | 1 | 8.70
AV C6 SEM27 61X250 | 63.00 | 27.00 | 61.00 | 21.00 | 228.0 | 250.00 | M20 | 1 | 7.40
AV C6 SEM27 61X300 | 63.00 | 27.00 | 61.00 | 21.00 | 278.0 | 300.00 | M20 | 1 | 8.50

Notes

• Family table above reflects available anti‑vibration shell mill holder family items and key dimensions as provided on the product family listing.
• Data chip pocket indicator: 1 = slot for data chip, 0 = without slot for data chip.
• Connection retention knob thread sizes (e.g. M16, M20) and other mechanical parameters are listed per family item.

Technical specifications

• Model / Series: WHISPERLINE
• Function: Built‑in anti‑vibration absorber for shellmill/toolholder assemblies
• Maximum recommended reach: up to 6XD for roughing and finishing
• Compatibility: ISCAR CAMFIX modular system (ISO 26623-1) exchangeable tapered shanks
• Coolant: internal coolant directed to cutting edge in deep milling applications
• Performance claim: enables higher productivity (up to 3×) vs classic long holders in damping‑limited applications
• Intended use: deep milling, long overhangs, large L/D ratio machining
• Effect: reduces chatter to improve surface finish and extend tool life
• Visual assets: product images and family items available in manufacturer catalog / eCatalog (see Image Gallery)
