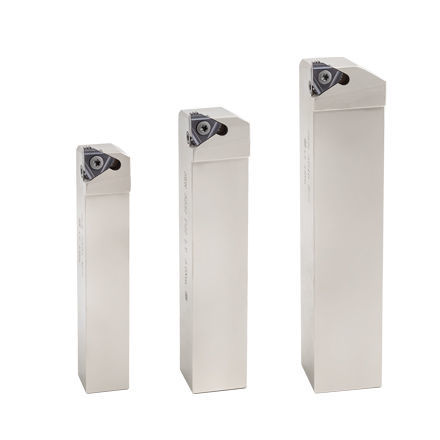

Threading insert QUICK-THREAD

Product Overview
QUICK-THREAD is a multi-tooth threading insert concept developed to reduce the number of passes required when machining external (OD) and internal (ID) threads on lathes. QUICK-THREAD inserts are designed to be mounted in standard ISO-style holders and can be used with JETCUT holders for pinpointed coolant delivery directly to the cutting zone.

Design and Cutting Concept
QUICK-THREAD is a multi-tooth insert where each tooth performs a specific task along the same insert: the first tooth is dedicated to roughing, the second tooth to medium / semi-finishing (removing the bulk of material), and the last tooth to finishing the thread to required dimensions. The multiple-teeth arrangement increases the metal removal rate and reduces the number of separate passes required to produce a complete thread profile.

Benefits

• Fewer passes: typically 1–2 passes to obtain a full, correct thread profile versus up to 4 passes with some competing systems.
• Higher metal removal rate and faster cycle times.
• Improved surface finish and extended tool life due to staged cutting actions by individual teeth.
• Lower total machining cost per thread because of reduced number of tool changes and shorter cycle time.

Operational Notes

• Larger thread relief is required to allow clearance of multiple teeth upon exit.
• Inserts are compatible with standard ISO insert holders; JETCUT holders are recommended when pinpoint coolant is required to maximize chip evacuation and tool life.
• Best applied where threaded features can benefit from reduced multi-pass operations (production threading on lathes).

Examples of available designations (family samples)
ER-ISO 3M-Q family — sample items (excerpt)
16ER 0.75 ISO 3M-Q IC908 | IC908 | IC908 | IC: 9.52 (IC), TP: 0.750, INSL: 16.00, RE: 0.12, PDX: 1.90, PDY: 1.40, NT: 3
16ER 1.00 ISO 3M-Q IC908 | IC908 | IC908 | IC: 9.52, TP: 1.000, INSL: 16.00, RE: 0.13, PDX: 2.50, PDY: 1.70, NT: 3
22ER 1.50 ISO 3M-Q IC908 | IC908 | IC908 | IC: 12.70, TP: 1.500, INSL: 22.00, RE: 0.23, PDX: 3.70, PDY: 2.40, NT: 3
22ER 2.00 ISO 3M-Q IC908 | IC908 | IC908 | IC: 12.70, TP: 2.000, INSL: 22.00, RE: 0.26, PDX: 4.80, PDY: 2.90, NT: 3

Related family (Whitworth / BSW) — sample item
22ER 14 W 3M-Q IC908 | IC908 | IC908 | IC: 12.70, TPI: 14, INSL: 22.00, RE: 0.23, PDX: 4.30, PDY: 2.60, NT: 3

Video / Image
Product materials include demonstration videos and an image gallery showing QUICK-THREAD tooling, tool assemblies and applications comparing competitor solutions and ISCAR results.

Technical specifications

• Commercial name: QUICK-THREAD
• Type: multi-tooth threading insert for lathe OD and ID threading
• Mounting: ISO insert format (fits standard ISO holders)
• Coolant: Compatible with JETCUT holders for pinpointed coolant delivery
• Insert tooth function: 1st tooth = roughing; 2nd tooth = medium / semi-finish; final tooth = finishing
• Typical advantage: 1–2 passes to finished profile versus up to 4 passes for some competitors
• Requires increased thread relief to clear multiple teeth on exit
• Primary benefits: increased productivity, reduced cycle time, better surface finish, longer tool life, cost savings
• Representative insert families / examples: ER-ISO 3M-Q family (designations and parameters as listed above)
• Applications: OD and ID threading on lathes, production threading where reduced pass count is desired
• Notes: Ensure holder compatibility and sufficient relief geometry; consider coolant method (pinpoint coolant recommended) and adjust toolpath and passes accordingly.
