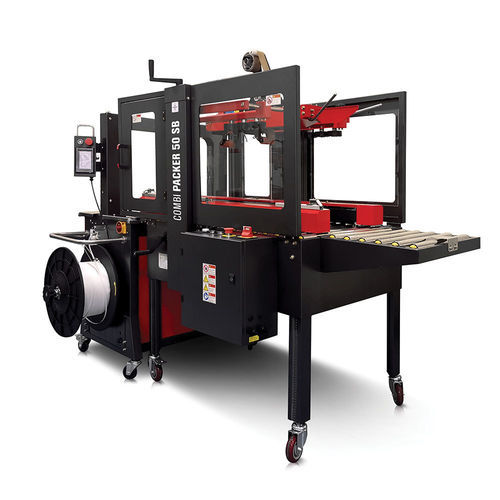

Adhesive tape taping machine 50 SB

manual settingautomatic

Product overview
The Combi Packer 50 SB is a semi-automatic combined taping and arch-strapping machine with manual sizing and automatic arch strapping. It performs top and bottom taping and single or double parallel strapping; both functions can run simultaneously or independently via a touchscreen panel. Two motor-driven lateral belts ensure smooth transfer and precise flap alignment for consistent sealing. Strap distance is adjustable using photocells on sliding guides. Controls and adjustments are designed for use by non-specialized operators.

5 great reasons to choose this product

• Technical support available for purchase
• Excellent value for money
• 12-month warranty on spare parts
• Compact footprint for easy storage and handling
• Manufacturer with over 35 years on the market

Product information
Machine size: L 1794 x W 1303 x H 1613 mm.
Net weight: 450 kg.
Supply voltage: 220 V, 1Ph.
Frequency: 50/60 Hz.
Installed power (taping): 0.4 kW.
Installed power (strapping): 0.70 kW.
Tape types accepted: Kraft, polypropylene (PP), PVC.
Strapping arch size: L 650 x H 500 mm.
Max. strap tension: up to 45 kg.
Strap widths: 5, 9, 12 mm.
Strap thickness: 0.45–0.65 mm.
Taping speed: approx. 6–8 boxes/min (dependent on box size and settings).
Transfer speed: 19 m/min.
Work surface height: 850 mm.
Minimum product size: L 150 x W 120 x H 120 mm.
Maximum product size: unlimited length x W 480 x H 480 mm.
Box type: American-style boxes.

Characteristics / technical specifications

• Model: Combi Packer 50 SB
• Machine weight: 450 kg
• Power supply: 220 V, 1Ph, 50/60 Hz
• Box transfer speed: 19 m/min
• Max box weight: 30 kg
• Machine dimensions: L 1794 x W 1303 x H 1613 mm
• Max noise level: ≤ 75 dB
• Emergency stop mushroom (CE compliant)
• Accepted adhesive tapes: Kraft, PP, PVC
• Standard taping heads: 50–75 mm
• Worktop height: 850 mm
• Strapping widths supported: 5 / 9 / 12 mm
• Strap thickness supported: 0.45–0.65 mm
• Strapping arch: 650 x 500 mm
• Strapping speed: up to 65 cycles/min
• Max strap tension: 45 kg
• Integrated strapping model: Speed Strap
• Strapping installed power: 0.70 kW
• Type of strapping: PP (polypropylene)
• Strapping cutting device included
• Taping production rate: about 6–8 boxes/min (depending on box size and settings)
• Min box dimensions: L 150 x W 120 x H 120 mm
• Max box dimensions: length unlimited x W 480 x H 480 mm
