Adhesive tape taping machine 50 SBR

automatic

Overview

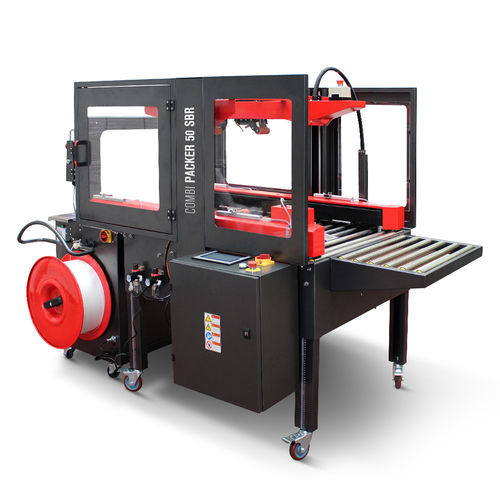

The Combi Packer 50 SBR is a self-sizing combined taping and high-speed arch strapping machine designed for inline operation in automated packaging lines. It integrates a taping unit and an automatic arch strapping unit in one compact system. Dual motorized lateral belts, each driven independently, ensure stable feeding and accurate flap alignment. Taping and strapping can run simultaneously or independently and are controlled from a color touchscreen panel.

5 great reasons to choose this product

• Technical support for procurement
• Excellent value for money
• 12-month warranty on spare parts
• Fast delivery times
• Proven on the market for over 35 years

Product information
Machine size: L 1794 x W 1303 x H 1613 mm
Net weight: 450 kg
Supply voltage: 220 V – 1Ph
Frequency: 50 / 60 Hz
Installed power (taping): 0.4 kW
Installed power (strapping unit): 0.70 kW
Adhesive tape supported: Kraft, polypropylene, PVC
Strapping arch size: L 650 x H 500 mm
Max. strap tension: Up to 45 kg
Strap widths supported: 5 / 9 / 12 mm
Strap thickness: 0.45 – 0.65 mm
Taping speed: 6–8 boxes/min
Transfer speed: 19 m/min
Work surface height: H 850 mm
Minimum product size: L 150 x W 120 x H 120 mm
Maximum product size: L ∞ x W 480 x H 500 mm
Type of boxes: American style

Key features

• Self-sizing taping system suitable for inline operation
• Integrated high-speed automatic arch strapping unit (supports 1, 2 or 3 straps)
• Independent motorized lateral belts for precise feeding and flap alignment
• Adjustable strap spacing via touchscreen; minimal operator setup
• Digital color touchscreen control panel
• Standard taping heads for tape widths 50–75 mm
• Emergency stop mushroom for CE compliance
• Maximum box weight capacity: 30 kg
• Maximum measured noise: ≤ 75 dB
• Strapping machine model: Speed Strap; strapping speed: 65 cycles/min; strapping material: PP (polypropylene)

Workable product range

• Min. box dimensions: L 150 x W 120 x H 120 mm
• Max. box dimensions: L ∞ x W 480 x H 480 mm
• Box type: American style

Technical specifications

• Machine dimensions: L 1794 x W 1303 x H 1613 mm
• Net weight: 450 kg
• Supply voltage: 220 V – 1Ph
• Frequency: 50 / 60 Hz
• Installed power (taping): 0.4 kW
• Installed power (strapping): 0.70 kW
• Box transfer speed: 19 m/min
• Taping speed: 6–8 boxes/min
• Strapping speed: 65 cycles/min
• Max box weight: 30 kg
• Max strap tension: 45 kg
• Strap widths: 5 / 9 / 12 mm
• Strap thickness: 0.45 – 0.65 mm
• Strapping arch size: 650 x 500 mm
• Worktop height: 850 mm
• Supported adhesive tapes: Kraft, polypropylene (PP), PVC
• Standard taping head widths: 50 – 75 mm
• Max noise: ≤ 75 dB
