Adhesive tape taping machine 50A CF

manual settingautomatic

Overview

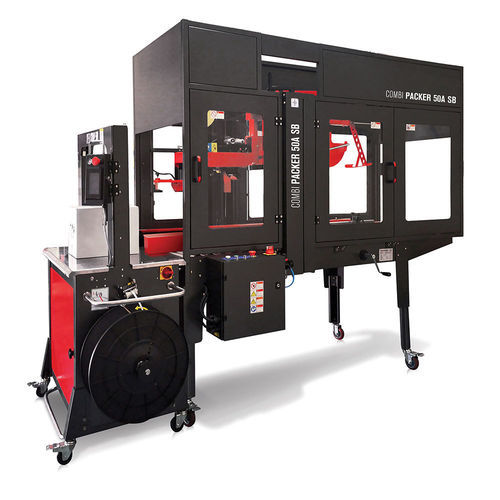

The Combi Packer 50A CF is an automatic taping machine with manual sizing, combining a flap-closing taping unit and an integrated arch strapping machine (Speed Strap). It automatically folds the four top flaps and seals the top and bottom of fixed-size American-style boxes with self-adhesive tape. Quick and easy format adjustments make it suitable for fully automatic, unmanned production lines.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support available for purchase
• Excellent value for industrial packaging lines
• 12-month warranty on spare parts
• Fast setup and format changeover
• Manufacturer experience: over 35 years on the market

Product information
Machine overall size: L 2820 x W 1250 x H 2143 mm.
Net weight: 450 kg
Supply voltage: 380 V
Power frequency: 50 / 60 Hz
Installed power (taping machine): 0.4 kW
Adhesive tape types: Kraft, polypropylene, PVC
Strapping arch size: L 650 x H 500 mm
Max. strap tension: up to 45 kg
Supported strap widths: 5 – 9 – 12 mm
Strap thickness: 0.45 – 0.65 mm
Taping speed: 8–10 boxes/min
Transfer speed: 19 m/min
Work surface height: 850 mm
Minimum box size: L 200 x W 150 x H 120 mm
Maximum box size: L 600 x W 500 x H 480 mm
Box type: American-style fixed-size boxes

Technical features of the taping machine

• Machine net weight: 450 kg
• Power supply: 380 V – 50/60 Hz
• Box transfer speed: 19 m/min
• Required air pressure: 6 bar
• Maximum box weight: 30 kg
• Machine dimensions: L 2820 x W 1250 x H 2143 mm
• Maximum noise level: ≤ 75 dB
• Emergency stop mushroom for CE compliance
• Adhesive tape compatible: Kraft, polypropylene, PVC
• Standard taping heads: 50 – 75 mm
• Worktop height: 850 mm

Strapping Machine Features

• Strap widths supported: 5 – 9 – 12 mm
• Strap thickness: 0.45 – 0.65 mm
• Worktop height: 850 mm
• Strapping arch size: 650 x 500 mm
• Strapping speed: up to 65 cycles/min
• Max. strap tension: 45 kg
• Strapping machine model: Speed Strap
• Installed power (strapping machine): 0.70 kW
• Type of strapping: PP (Polypropylene)

Workable product

• Minimum box dimensions: L 200 x W 150 x H 120 mm
• Maximum box dimensions: L 600 x W 500 x H 480 mm
• Box type: American-style, four-flap boxes

Technical specifications

• Model: Combi Packer 50A CF
• Brand: ISGPACK
• Machine overall dimensions: L 2820 x W 1250 x H 2143 mm
• Net weight: 450 kg
• Power supply: 380 V, 50/60 Hz
• Installed power (taping): 0.4 kW
• Installed power (strapping): 0.70 kW
• Transfer speed: 19 m/min
• Taping speed: 8–10 boxes/min
• Strapping speed: 65 cycles/min
• Strapping arch size: 650 x 500 mm
• Supported strap widths: 5, 9, 12 mm
• Supported strap thickness: 0.45 – 0.65 mm
• Max strap tension: up to 45 kg
• Adhesive tape types: Kraft, polypropylene, PVC (heads 50–75 mm)
• Air pressure requirement: 6 bar
• Max box weight: 30 kg
• Work surface height: 850 mm
• Min box size: L 200 x W 150 x H 120 mm
• Max box size: L 600 x W 500 x H 480 mm
• Box compatibility: American-style fixed-size boxes
• Max noise level: ≤ 75 dB
• CE safety: emergency stop mushroom
