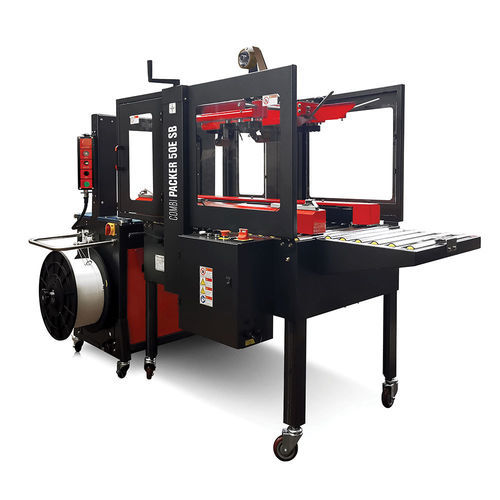

Adhesive tape taping machine 50E SB

manual setting

Overview
The Combi Packer 50E SB is a semi-automatic combined taping and strapping machine with manual box sizing and automatic arch strapping. It seals and straps American-style boxes; taping and strapping operations can run simultaneously or independently via the touchscreen control.

Operation
Boxes are advanced by two lateral motorized belts for smooth transport and precise flap alignment. The machine can be set to: taping only, taping plus one strapping, or taping plus two parallel strapping operations. Strapping positions are adjustable using photocells on sliding guides. Designed for straightforward setup and use by non-specialized operators.

5 great reasons to choose this product

• Technical support available for purchase
• Competitive price-to-performance ratio
• 12-month warranty on spare parts
• Fast delivery times
• Proven reliability with over 35 years on the market

Product information (table)
Machine size: L 1794 × W 1303 × H 1613 mm.
Net weight: 450 kg.
Supply voltage: 220 V, single phase.
Frequency: 50 / 60 Hz.
Installed power (taping): 0.4 kW.
Installed power (strapping): 0.70 kW.
Adhesive tape compatible: Kraft, polypropylene (PP), PVC.
Strapping arch size: L 650 × H 500 mm.
Max strap tension: up to 45 kg.
Strap width: 9–12 mm.
Strap thickness: 0.45–0.65 mm.
Taping speed: 6–8 boxes/min (indicative).
Transfer speed: 19 m/min.
Worktop height: 850 mm.
Minimum box size: L 150 × W 120 × H 120 mm.
Maximum box size: L ∞ × W 480 × H 500 mm.
Box type: American-style boxes.

Features and parameters

• Machine weight: 450 kg
• Power supply: 220 V – 50/60 Hz
• Box transfer speed: 19 m/min
• Air pressure required: 6 bar
• Maximum box weight: 30 kg
• Digital color touchscreen for taping control
• Machine dimensions: L 1794 × W 1303 × H 1613 mm
• Maximum noise level: ≤ 75 dB
• Emergency stop mushroom (CE compliant)
• Supported adhesive tapes: Kraft, PP, PVC
• Standard taping head widths: 50–75 mm
• Worktop height: 850 mm

Strapping machine features

• Strap width: 9–12 mm
• Strap thickness: 0.45–0.65 mm
• Strapping arch: 650 × 500 mm
• Analogue control panel for strapping unit
• Strapping speed: up to 40 cycles/min
• Max strap tension: 45 kg
• Strapping unit model: Easy Strap
• Installed power (strapping): 0.70 kW
• Strap material: PP (polypropylene)

Workable product

• Minimum box dimensions: L 150 × W 120 × H 120 mm
• Maximum box dimensions: L ∞ × W 480 × H 500 mm
• Box type: American-style

Technical specifications

• Model: Combi Packer 50E SB
• SKU: CP50ESB
• Net weight: 450 kg
• Power supply: 220 V single phase, 50/60 Hz
• Installed power (taping): 0.4 kW
• Installed power (strapping): 0.70 kW
• Transfer speed: 19 m/min
• Taping speed: 6–8 boxes/min
• Strapping speed: 40 cycles/min
• Worktop height: 850 mm
• Air pressure: 6 bar
• Max box weight: 30 kg
• Noise level: ≤ 75 dB
