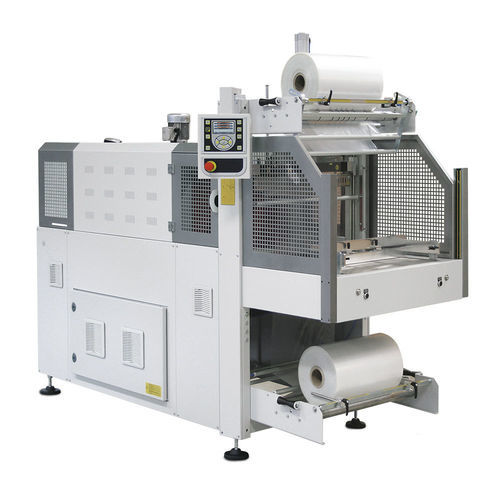

Bundling machine FS600

Overview
FS600 semi-automatic bundling machine with 550 mm cross sealing bar, motorized upper and lower unwinders and monoblock sleeve-wrapper version fitted with a heat-shrink tunnel. Processes products up to 380 mm high. Maximum production speed: up to 10 ppm (depending on product size, package format and film type). Recommended film: LDPE 20–100 µm.

Operation
The operator places products (max height 380 mm) on the work surface; a pneumatic pusher (two-button control) moves them to the sealing bar. After film application a pneumatic press holds the product, then longitudinal cutting and sealing occur. The sealed package is conveyed by a motorized belt through the shrink tunnel to complete packaging.

Use and versatility

• Wide range of packable products
• Fast, operator-friendly packaging cycle
• Suitable for sectors: beverages, canning, edible oil mills, flour/granules/sugar, poultry (egg trays), graphics/paper processing, IT/electronics, household aerosols, cosmetics, pharmaceuticals, plastics, wood, metalworking, lubricants, box making, shelving, logistics, contract packing

5 reasons to choose this product

• Technical purchasing support
• 12-month spare parts warranty
• Short lead times
• Ability to store up to 20 work cycles
• FLXMOD® control with 4.3” graphic LCD and PLC

Technical data
Power supply: 220–240 / 380–415 V
Frequency: 50 / 60 Hz
Supply voltage: 3PH + PE / 3PH + N + PE
Installed power: 13,900 W
Air pressure: 6 bar
Air consumption: 14.5 Nl/p
Sealing bar: 550 mm
Max product height: 380 mm
Production speed: up to 10 ppm
Max reel dimensions: 540 x Ø 350 mm
Machine size: H 2105–2265 mm, L 2565 x W 1200 mm
Work surface height: 945–1105 mm
Net weight: 530 kg

Key features

• Semi-automatic bundling machine, monoblock structure
• Single-chamber shrink tunnel
• Motorized upper and lower unwinders with loading rollers and metric centering scale
• Pneumatic pusher controlled by two buttons and pneumatic product-holding press
• Pneumatic sealing bar with safety sensors
• Cold-blade film cutting with pneumatic actuation
• Motorized conveyor into shrink tunnel
• FLXMOD® control system: 4.3” graphic LCD rotary control with PLC; power and control section with inverter, IN/OUT modules (16 digital I/Os), analog inputs and thermocouple modules
• Speed regulation by inverters for wrapping machine and oven belts
• Adjustable tunnel airflow with independent deflectors
• Tunnel belt with high-heat-resistant fiberglass rods (SMI patent), supports products up to 30 kg, corrosion-free and easy maintenance
• Oven cooling system and reduced energy consumption
• CE compliance
