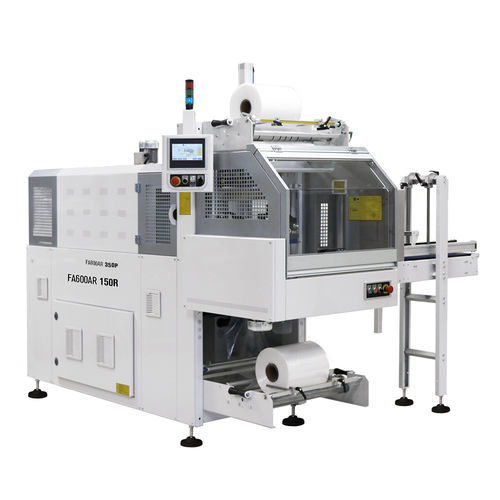

Bundling machine FA600AR150R

Overview
FA600AR 150R automatic bundler with 90° infeed and integrated single‑chamber shrink tunnel. Equipped with a 550 mm transversal sealing bar, motorized upper and lower unwinders and a motorized pusher. Designed for automatic bundle formation up to 380 mm package height with a maximum production speed up to 25 ppm depending on product, format and film.

Main features

• 90° variable‑speed infeed conveyor with inverter control
• Single‑chamber shrink tunnel with adjustable airflow
• Automatic bundle formation using multi‑push system
• Pneumatic cold‑blade film cutting
• Motorized upper and lower unwinders (upper controlled by inverter)
• 550 mm transversal sealing/welding bar with safety sensors
• Synchronized pneumatic entry press with motorized pusher
• Operation modes: automatic, semi‑automatic, free passage
• Monoblock structure with fixing feet

FLXMOD® control system

• 7" wide color touch‑screen operator interface
• PLC control
• Inverter with integrated encoder reading
• IN/OUT control modules
• Up to 50 storable work cycles

Tunnel and conveyor advantages

• Tunnel conveyor belt with high heat‑resistant fiberglass rods (SMI patent) ensuring rigidity and product stability
• Improved shrink results and compact packages
• Capable of conveying products up to 30 kg
• No corrosion issues typical of metal conveyor belts
• Easy and economical maintenance with individual bar replacement
• Adjustable airflow in the tunnel via independent deflectors

Use and suitable sectors

• Wide range of packable products
• Fast and repeatable packaging process suitable for industrial lines
• Applicable sectors: beverages, canning, edible oils, flour, granules, sugar, poultry (egg trays), graphics, paper processing, IT, household aerosols, cosmetics, pharmaceuticals, electro‑technical, plastics, wood, detergents/shampoos, metalworking, lubricants, box factories, shelving, logistics, contract packing

Production note
The indicated production speed (up to 25 ppm) depends on product dimensions, bundle format and film type; final performance must be validated on application.

Technical specifications

• Power supply: 220 – 240 / 380 – 415 V
• Frequency: 50 / 60 Hz
• Supply voltage: 3PH + PE / 3PH + N + PE
• Installed power: 14,200 W
• Air pressure: 6 bar
• Air consumption: 12 NLitres/min
• Sealing/welding bar: 550 mm
• Maximum product height: 380 mm
• Production up to: 25 ppm
• Maximum reel dimensions: 540 x Ø 350 mm
• Machine size (L x W): 2705 x 2340 mm, H 2105 – 2265 mm
• Work surface height: 945 – 1105 mm
• Net weight: 700 kg
