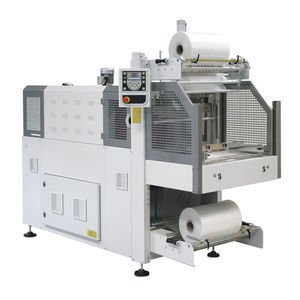

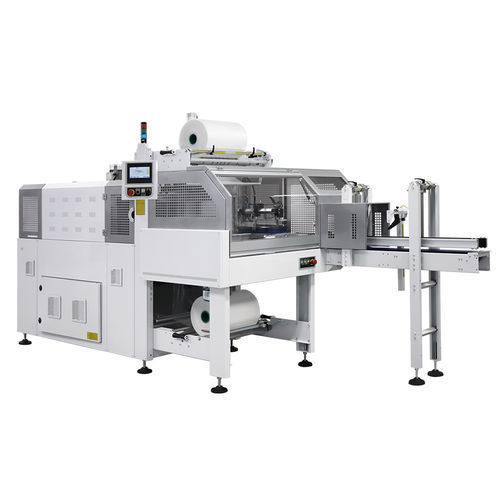

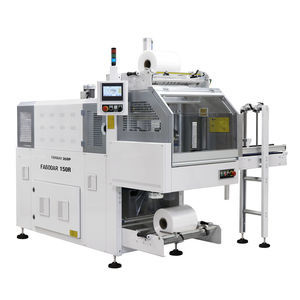

Bundling machine FA800AR150Z

Product overview
FA800AR 150Z automatic bundling machine with in-line infeed and shrink tunnel (single- or double-chamber depending on configuration). Equipped with a 760 mm transverse sealing bar and motorized upper and lower unwinders driven by inverters. Forms packs by automatic grouping for products up to 380 mm height; production speed up to 0–15 ppm depending on product, format and film.

Use and versatility

• Wide range of packable products
• Fast and simple packaging process
• Suitable for sectors: beverages, canned goods, edible oils, flour, granules, sugar, poultry (egg trays), graphics and paper processing, IT, household aerosols, cosmetics, pharmaceuticals, electrical-electronic, plastics, wood, paper, shampoos-detergents, metalworking, lubricants, box factories, shelving, logistics and contract manufacturing

Key features / Machine functions

• Automatic bundling machine with in-line entry
• Package formation with automatic grouping
• Single-chamber shrink tunnel (some summaries reference a double-chamber tunnel)
• Inverter-controlled variable-speed inline infeed conveyor
• Products conveyed by left or right automatic belt
• Input lanes: 1
• Product presence photocells and entrance obstruction detection
• Pneumatic input press and pneumatic depressor
• Multi-thrust system and pneumatically operated stabilizing press
• Double motorized pusher controlled by inverter and encoder
• Motorized upper unwinder (inverter controlled) and motorized lower unwinder
• Fixing feet, product holding press and oven outlet cooling fan included
• Operation modes: automatic, semi-automatic, free passage
• Monoblock structure
• Pneumatically operated sealing bar with safety sensors
• Cold-blade film cutting with pneumatic movement
• Rollers on unwinders and metric scale for reel centering
• FLXMOD® control system with 7" wide color touch screen, PLC, inverter with integrated encoder reading and IN/OUT control modules
• 50 storable work cycles
• Adjustable tunnel airflow by independent deflectors
• Tunnel conveyor belt with high heat-resistant fiberglass rods (SMI patent): rigid belt for product stability, capacity for products up to 30 kg, no rust issues, easy economical maintenance (replaceable rods)
• Oven cooling system and reduced energy consumption
• Industry 4.0 compatible and CE compliant

5 reasons to choose

• Technical purchasing support
• 12-month spare parts warranty
• Quick storage/commissioning
• Over 35 years on the market
• Good value for money

Technical specifications

• Power supply: 220 – 240 / 380 – 415 V
• Frequency: 50 / 60 Hz
• Supply voltage: 3PH + PE / 3PH + N + PE
• Installed power: 17540 W
• Air pressure: 6 bar
• Air consumption: 12 Nl/min
• Sealing bar: 760 mm
• Maximum product height: 380 mm
• Production: up to 15 ppm
• Maximum reel dimensions: 750 – ø 350 mm
• Machine size: 4060 x 1910 mm, H 2105 – 2265 mm
• Work surface height: 945 - 1105 mm
• Net weight: 895 kg
