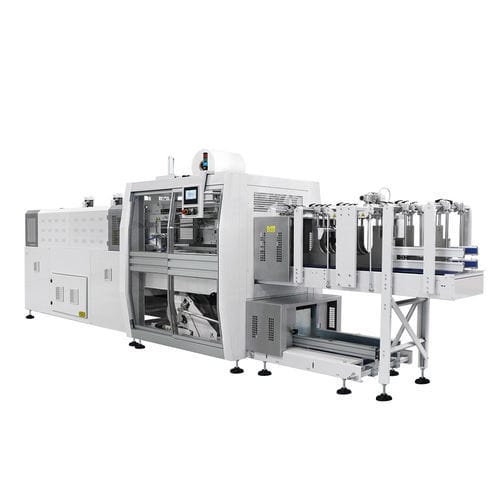

Bundling machine FA802ALV600R

Product overview
FA802ALV 600R automatic bundling machine with inline infeed and double-chamber shrink tunnel. Features a 760 mm transversal sealing bar and motorized upper and lower unwinders. This version forms packs by automatic grouping up to a maximum product height of 380 mm and offers a production range from 0 to 25 ppm (packs per minute).

Use and versatility

• Wide range of packageable products
• Quick, repeatable packaging process suitable for continuous production lines
• Suitable market sectors: beverages (milk, water, soft drinks, beer, wine), canning, edible oil and flour mills, granules and sugar, poultry (egg trays), graphic arts and paper converting, IT and electronics, household aerosols, cosmetics, pharmaceuticals, plastics, wood, metalworking, lubricants, box manufacturing, shelving and logistics, third‑party contract packers

Key features

• Inline automatic bundling machine with front-entry infeed
• Sliding safety doors with deceleration device
• Automatic pack formation by grouping
• Product input regulated by oscillating electromechanical sorter
• Front entry belt width: 530 mm
• Photocells for infeed speed change, end-of-flow detection, accumulation/row control, tunnel obstruction and exit accumulation; double photocell for separator-chain obstruction
• Adjustable entrance guides
• Separator with pneumatic press synchronized to motorized chain pusher controlled by inverter and encoder
• Pneumatic side guides to guide formed product beyond the sealing bar and prevent package deformation
• Motorized upper and lower reel holders with inverter control; rollers on unwinders for easier reel loading; metric scale for coil centering
• Operating mode: film only
• Double-chamber shrink tunnel with adjustable airflow via independent deflectors
• Variable-speed inline infeed conveyor controlled by inverter
• Machine configurable for left- or right-side operator
• Input files supported: 1, 2, 3, 4, 5, 6
• Pneumatically operated product guides synchronized with the chain pusher to assist pack formation
• Fixing feet, product holding press and oven outlet cooling fan included
• Operation modes: automatic, semi-automatic, free passage
• Pneumatically operated sealing bar with safety sensors; cold-blade film cutting with pneumatic actuation
• FLXMOD® Control System with sliding 7" color touchscreen HMI, PLC, inverter with integrated encoder reading and I/O modules
• 50 storable work cycles
• Tunnel conveyor belt with high heat‑resistance fiberglass rods (SMI patent) for belt rigidity, stable products and compact shrink results; supports products up to 30 kg; corrosion-free and easy maintenance with replaceable rods
• Oven cooling system; reduced energy consumption; Industry 4.0 compliant; CE conformity

5 great reasons to choose this product

• Technical support for purchasing
• Competitive total cost of ownership
• 12‑month warranty on spare parts
• Fast commissioning and spare part availability
• Manufacturer experience: over 35 years on the market

Characteristics / Technical specifications

• Power supply: 220–240 / 380–415 V
• Frequency: 50 / 60 Hz
• Supply voltage: 3PH + PE / 3PH + N + PE
• Installed power: 33,650 W
• Air pressure: 6 bar
• Air consumption: 17 NL/min
• Welding/sealing bar: 760 mm
• Maximum product height: 380 mm
• Production up to: 25 ppm
• Maximum reel dimensions: 750 mm diameter – ø 350 mm core
• Machine dimensions: 6215 x 1575 mm; H 2105–2265 mm
• Working surface height: 945–1105 mm
• Net weight: 1575 kg
