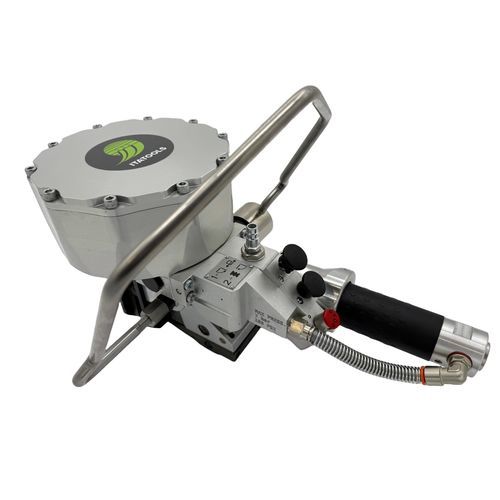

Pneumatic strapping tool ITA 42

for steel strapssemi-automaticwith seal

Short description
Pneumatic steel strapping tool ITA 42 for 19 mm, 25 mm and 32 mm steel straps. Available in two tension capacities (9000 N and 15000 N). The tool features two operating buttons, automatic tensioning and a suspension hook for easier handling. Designed for double-notch seal joints and low maintenance operation.

Features

• Two operating buttons for controlled cycles
• Automatic tensioning system
• Compatible with 19/25/32 mm steel straps
• Suspension hook included for handling
• Low maintenance design

Benefits

• Double-notch seal joint ensures consistent mechanical locking
• Select between 9000 N and 15000 N tension capacities to suit application needs
• Fast tensioning speeds to improve throughput
• Simple controls reduce operator training time
• Suspension hook improves ergonomics during repeated use

Product details
ITA 42 is a combined pneumatic strapping tool designed for steel straps 19 mm, 25 mm and 32 mm. It is available in two motor versions with nominal tension capacities of 9000 N and 15000 N. The tool operates at an air pressure of 6 bar (≈87 psi) and provides automatic tensioning via two operating buttons. ITA 42 produces a double-notch seal joint and includes a suspension hook for easier handling. The unit is engineered for reduced maintenance requirements.

Technical specifications

• Dimensions (L×W×H): 430 mm × 260 mm × 310 mm (16.9 in × 10.2 in × 12.2 in)
• Weight: 10.3 kg (22.6 lb)
• Compatible strap widths: 19 mm / 25 mm / 32 mm
• Motor versions (tension capacity): 9000 N and 15000 N
• Operating controls: 2 operating buttons
• Air pressure: 6 bar (≈87 psi)
• Tensioning speed: 4.5 m/min @ 9000 N — 4.0 m/min @ 15000 N
• Seal type: Double-notch seal joint
• Seal strength: ~80% of strap break load (varies with strap type)
• Handling: Suspension hook included
