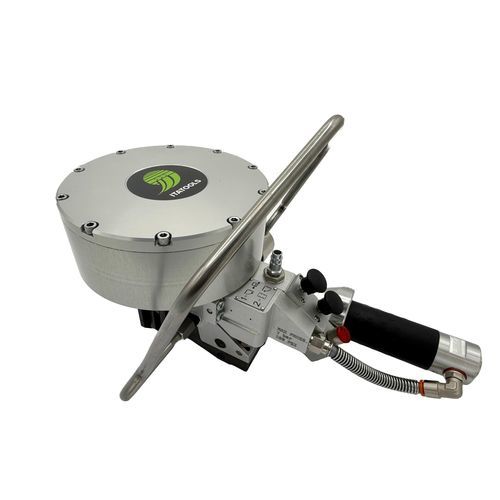

Pneumatic strapping tool ITA 62

for steel strapssemi-automaticwith seal

Short description
Combined pneumatic steel strapping tool with double-notch seal joint for 19 mm, 25 mm and 32 mm steel straps; operates from 4.5 bar and is available in 9000 N and 15000 N motor versions. Two operating buttons enable automatic tensioning; suspension hook included.

Features

• Low pressure operation from 4.5 bar
• Two operating buttons for controlled use
• Double-notch seal joint
• Compatible with 19 / 25 / 32 mm steel straps
• Two motor/tension versions: 9000 N and 15000 N
• Suspension hook supplied
• Designed for low maintenance and quick cycles

Benefits

• Reliable double-notch sealing for consistent closures
• Automatic tensioning reduces operator steps
• Adjustable tension levels to match application needs
• Works with a wide range of steel strap sizes
• Suspension hook facilitates handling on the line

Description
ITA 62 is a combined double-notch seal joint pneumatic tool designed for industrial steel strapping applications on 19 mm, 25 mm and 32 mm straps. Engineered to operate from low air pressure (from 4.5 bar), it features two operating buttons that enable automatic tensioning and simplified cycle control. Two motor/tension versions (9000 N and 15000 N) provide selectable tension capacity to suit different load and application requirements. The tool includes a suspension hook for easy placement and is made for reduced maintenance and efficient operation.

Technical specifications

• Model: ITA 62
• Joint type: Double-notch seal joint
• Compatible strap widths: 19 mm, 25 mm, 32 mm
• Operating pressure: from 4.5 bar (low pressure)
• Maximum tension / motor versions: 7000 N (at low pressure), 9000 N, 15000 N
• Tension speed: 12 m/min @ 7000 N; 5 m/min @ 9000 N; 4 m/min @ 15000 N
• Controls: 2 operating buttons (automatic tensioning)
• Suspension hook: Included
• Dimensions (L×W×H): 430 × 260 × 310 mm
• Weight: 11.3 kg
• Seal strength: approx. 80% of strap breaking load (varies with strap type)
