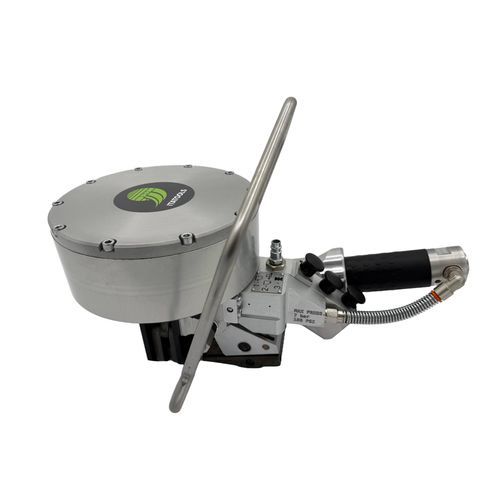

Pneumatic strapping tool ITA 61

for steel strapswith seal

Product overview
ITA 61 is a combined double notch seal joint pneumatic steel strapping tool for 19 mm / 25 mm / 32 mm steel straps. Designed to operate at low air pressure (from 4.5 Bar), it is suitable for applications with long air connections. The tool provides manual tension control via three operating buttons and is supplied with a suspension hook.

Features

• Operates from 4.5 Bar
• Three operating buttons for manual tension control
• Compatible with 19 / 25 / 32 mm steel straps
• Two motor versions: 9000 N and 15000 N
• Suspension hook included
• Low maintenance requirement

Benefits

• Double notch seal joint for a mechanical seal
• Manual tensioning for operator control
• Selectable tension range with two motor options
• Suitable for installations with long air lines
• Built-in suspension hook for easier handling

Technical specifications

• Model: ITA 61
• Dimensions (L×W×H): 430 mm × 260 mm × 310 mm
• Weight: 11.3 kg (25 lbs)
• Strap compatibility: steel straps 19 mm, 25 mm, 32 mm
• Operating pressure: from 4.5 Bar
• Maximum tension: reference 7000 N at low pressure; motor versions 9000 N and 15000 N
• Tension speed: 12 m/min @ 7000 N; 5 m/min @ 9000 N; 4 m/min @ 15000 N
• Seal type: double notch seal joint
• Seal efficiency: approx. 80% of strap break load (depends on strap type)
• Accessory: suspension hook included
