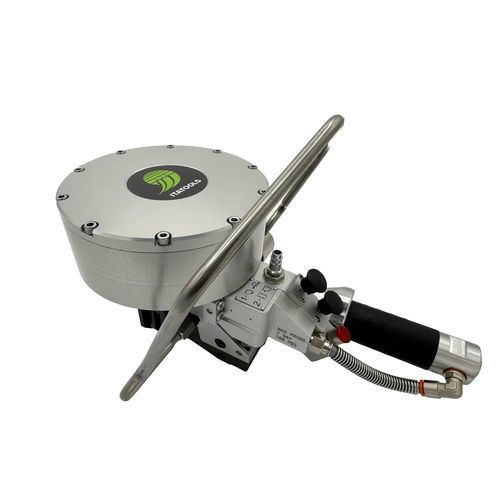

Pneumatic strapping tool ITA 52

for steel strapssemi-automaticwith seal

Short description
Pneumatic steel strapping tool with UP-CUT seal joint and double-notch sealing, for 19 mm, 25 mm and 32 mm steel straps. The tool provides automatic tensioning and is available in two motor force versions.

Features

• Two operating buttons for controlled sequence
• UP-CUT seal joint with double-notch
• Automatic tensioning system
• Two motor force options: 9000 N and 15000 N
• Suspension hook supplied for handling

Benefits

• Compatible with a wide range of steel strap widths (19/25/32 mm)
• Adjustable tension suitable for different applications
• Fast cycle times
• Low maintenance requirement
• Suitable for industrial steel strapping operations

Product details
ITA 52 is a pneumatic combined double-notch strapping tool featuring an UP-CUT seal joint. It supports 19 mm, 25 mm and 32 mm steel straps and uses two operating buttons to activate automatic tensioning. Two motor force versions (9000 N and 15000 N) allow selection of the required tension. A suspension hook is supplied to facilitate handling and installation of seal joints.

Technical specifications

• Model: ITA 52
• Seal joint type: UP-CUT
• Notch type: Double-notch
• Strap width compatibility: 19 mm / 25 mm / 32 mm
• Operating controls: 2 operating buttons
• Automatic tension: Yes
• Motor force options: 9000 N and 15000 N
• Air pressure: 6 bar / 87 psi
• Tension speed: 4.5 m/min @ 9000 N – 4 m/min @ 15000 N
• Weld/seal efficiency: ≈80% of strap breaking load* (*depends on strap type)
• Suspension hook: Supplied
