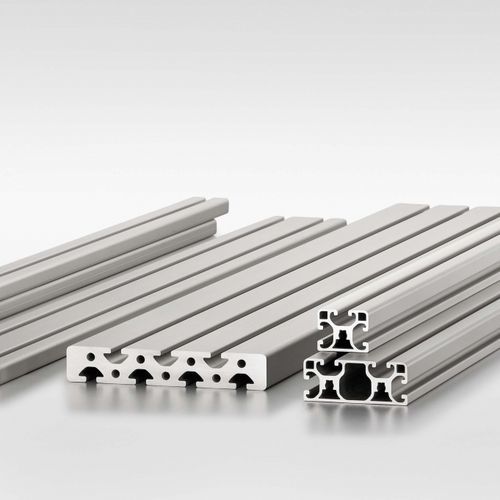

Anodized aluminum profile 7.0.000.01flatframeconstruction
Add to favorites
Compare this product
Characteristics
- Material
- anodized aluminum
- Configuration
- flat
- Applications
- construction, frame
- Width
40 mm
(1.575 in)- Height
16 mm
(0.63 in)
Description
Line - line 8
Property - natural
ESD-safe - Yes
Cross-sectional area - A = 2,24 cm2
Moment of Inertia, torsional - It = 0,53 cm4
Moment of Inertia, x-axis - Ix = 0,64 cm4
Moment of Inertia, y-axis - Iy = 3,34 cm4
Weight, spec. Length - m = 0,6 kg/m
Delivery unit - cut-off max. 3000 mm
Permissible groove extraction force - F = 1750 N
Resistance Moment, x-axis - Wx = 0,78 cm3
Resistance Moment, y-axis - Wy = 1,67 cm3
Profile 8 40x16 E can be used in conjunction with Hand Grip Element 8 to construct grip rails and handles.
