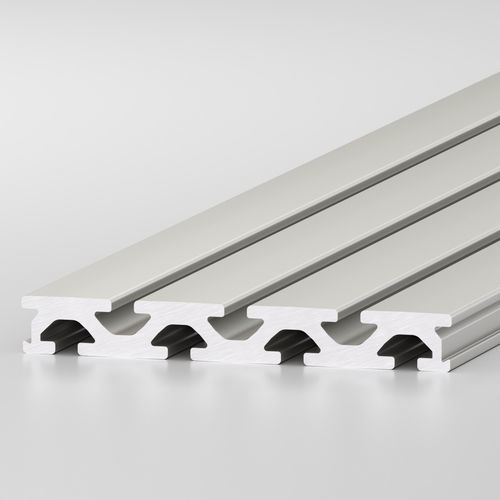

Anodized aluminum profile 0.0.465.79T-slotplateframe
Add to favorites
Compare this product
Characteristics
- Material
- anodized aluminum
- Configuration
- T-slot, plate
- Applications
- industrial, frame, connecting
- Width
152 mm
(5.984 in)- Height
20 mm
(0.787 in)
Description
Line - line 8
ESD-safe - Yes
Cross-sectional area - A = 18,39 cm2
Moment of Inertia, torsional - It = 2,69 cm4
Moment of Inertia, x-axis - Ix = 7,39 cm4
Moment of Inertia, y-axis - Iy = 350,5 cm4
Weight - m = 4,97 kg/m
Delivery unit - cut-off max. 6000 mm
Material - Al, anodized
Permissible groove extraction force - F = 5000 N
Colour - natural
Resistance Moment, x-axis - Wx = 7,2 cm3
Resistance Moment, y-axis - Wy = 46,12 cm3
Options for connecting the plate to the frame structure (using Button-Head Screw M8x16, washer DIN 125-8.4 and T-Slot Nut 8 St M8).
