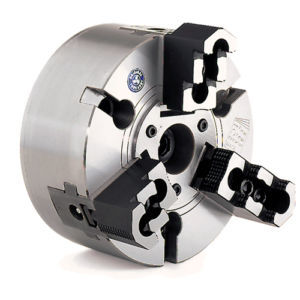

3-jaw turning chuck KTN/KTG

machiningprecisionworkpiece

Power-Operated Wedge Hook Chuck with Optional Centrifugal Compensation The universally applicable power chucks of the KT family are among the most sophisticated and flexible chucks in the FORKARDT product range. Available as two-jaw, three-jaw and four-jaw chucks. A patented wedge hook profile ensures enormous clamping forces and enables turning operations even in the heavy-duty machining sector with consistently high clamping accuracy. The flexible plus for your production: the modularity of this series. FORKARDT KT chucks are constructed according to the modular principle, i.e. the chuck and jaw connection dimensions are interchangeable and in combination with the optional quick-change jaw system (MIR), offer the possibility of reducing non-productive times to a minimum in the event of frequent jaw changes. It goes without saying that FORKARDT chucks are manufactured from high-quality materials and developed under ISO 9001 – 2000. Medium to high batch sizes Medium to heavy machining Machining of flange parts Precision machining of easily deformable workpieces Use for pre-machining and finishing Up to 70% higher load capacity than conventional wedge hook chucks Easy attachment to standardized spindle heads according to DIN and ASA Standard and special top jaws for difficult workpiece shapes Heavy-duty design for extreme machining Suitable for use with special workpiece shapes and areas of application Choice between KTN with standard piston or KTG with extended, guided piston neck for maximum repeat accuracy High clamping forces with high clamping accuracy Chuck cover with dirt-tight blind bore as tool outlet for drills and reamers
