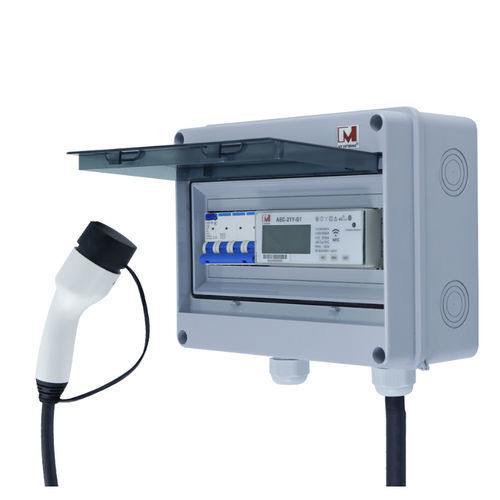

Electric vehicle charging station AEC-21Y-G1 energy-efficientfor mobile devicesAC
Add to favorites
Compare this product
Characteristics
- Options
- for electric vehicles, energy-efficient, for mobile devices
- Electrical characteristics
- AC
- Mounting
- wall-mounted, outdoor, portable
- Other characteristics
- renewable-powered
- Number of charging cable
- 1 charging cable
- Type
- Type 2, Type 1
- Power
Max.: 21 kW
(28.6 hp)Min.: 3.5 kW
(4.8 hp)- Output voltage
230 V, 400 V
Description
AEC-21Y-G1 is a single-phase and three-phase switchable AC EV charger with a maximum current of 32A and a maximum power of 21kw. It supports NFC, RS485, Bluetooth, 4G communication and has 14 safety protection functions. Multiple working modes can be applied to various home/commercial scenarios.
The IVY Smart Charging Module AEC-21Y-G1 is an intelligent core component specifically designed for AC electric vehicle (EV) charging piles. It integrates essential functions such as charging control, energy metering, and comprehensive leakage protection. The module offers flexible operation with support for both three-phase and single-phase charging modes, delivering a maximum current of 32A and a maximum power output of 21kW, adapting to various AC power environments. Equipped with multiple communication interfaces including RS485, 4G, Bluetooth, and NFC, it supports local and remote operations, maintenance, and diverse payment methods like card swiping and mobile payments. Its compact, DIN rail mountable design allows for easy integration into various charging pile enclosures, making it suitable for a wide range of applications including home garages, commercial parking lots, community charging stations, and long-term rental operations. The module prioritizes high safety, intelligent management, and flexible scalability to support efficient and convenient EV charging services.
Key Features:
Flexible Charging Capabilities:
Charging Mode: Mode 3.
Compatible with Type 1 (SAE J1772) and Type 2 (IEC 62196-2) charging connectors.
Integrated Metering:
Built-in energy metering with Class 1.0 accuracy.
Pulse constant: 1000 imp/kWh.
Real-time data upload capability.
The IVY Smart Charging Module AEC-21Y-G1 is an intelligent core component specifically designed for AC electric vehicle (EV) charging piles. It integrates essential functions such as charging control, energy metering, and comprehensive leakage protection. The module offers flexible operation with support for both three-phase and single-phase charging modes, delivering a maximum current of 32A and a maximum power output of 21kW, adapting to various AC power environments. Equipped with multiple communication interfaces including RS485, 4G, Bluetooth, and NFC, it supports local and remote operations, maintenance, and diverse payment methods like card swiping and mobile payments. Its compact, DIN rail mountable design allows for easy integration into various charging pile enclosures, making it suitable for a wide range of applications including home garages, commercial parking lots, community charging stations, and long-term rental operations. The module prioritizes high safety, intelligent management, and flexible scalability to support efficient and convenient EV charging services.
Key Features:
Flexible Charging Capabilities:
Charging Mode: Mode 3.
Compatible with Type 1 (SAE J1772) and Type 2 (IEC 62196-2) charging connectors.
Integrated Metering:
Built-in energy metering with Class 1.0 accuracy.
Pulse constant: 1000 imp/kWh.
Real-time data upload capability.
