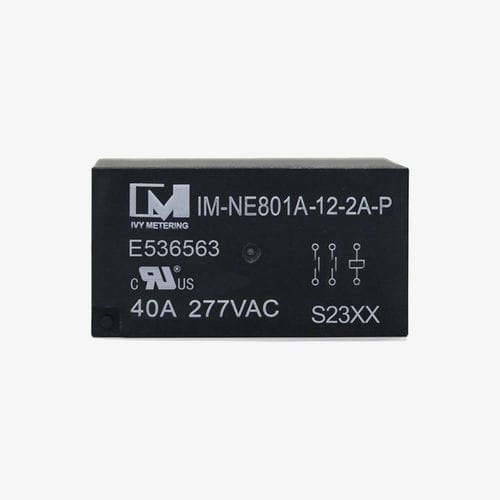

AC electromechanical relay IM-NE801A IEC/CB/UL

12VDCcompacttwo-phase

The IM-NE801A printed circuit board (PCB) two-pole (2P) ac power relay is designed to switch EV charging applications on and off. Its extended contact gap of greater than 3 mm provides better isolation and allows for usage in higher elevation environments. The very compact form factor has a low temperature rise and heavy-duty power switching current up to 40 A/277 V ac. This relay family enables compliance with all EV charging infrastructure standards such as IEC 61851-1, IEC 62955, IEC 62752 and UL 2231. In addiction to EV charging station, it is also widely used in PV inverter, motor control, home appliance, and industrial Automation. FEATURES & BENEFITS Low contact resistance, Low temperature rise at rated current Contact rating up to 40 A: Suitable for Mode 2 and Mode 3 EV charging defined by IEC 61851-1 and Ac Level 2 EV charging defined by SAE J1772 Certified to IEC 61810-1: Contact load category CC 2, 50,000 cycles; Enables compliance to IEC 61851-1 for switching of main current path Large contact gap Meets overvoltage category III requirement and provides enhanced protection against shock and vibration for added safety and longevity Compact size Smaller footprint than two single-pole relays for similar current rating adding design flexibility
