Single-phase electric energy meter EU868MHz

DIN railresidentialprepaid

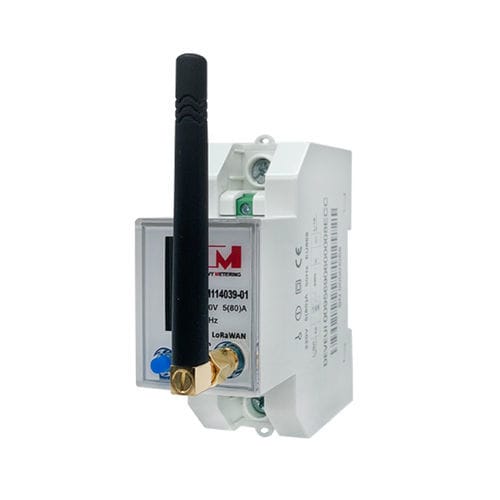

EM114039 is a Single-Phase Smart Electric Wall-mounted & EU868 LoRaWAN meter. it can also be named as Lorawan electrical measurement sensor. It can Measures: V, A , kW, kvar, kWh, kvarh, Power Factor... It is a single-phase smart electricity meter, which support LoRaWAN remote communication, has built-in relay, can realize remote control of relay on/off, and remote meter reading, It is widely used in smart cities and power distribution systems of the Internet of Things. We can also offer you a LoRa-based prepaid energy metering solution. Features: Single phase 80A Direct Connected 2 Module DIN rail mounted Class 1.0 accuracy MID Certified Highly visible backlit display Simple menu navigation Remote On/Off over LoRaWAN Lorawan Communication, LoRaWAN EU868 for remote monitoring Power Consumption Measurement (Voltage, Current, Power Factor and used Wh) – Possibility to reset the Wh counter) Overload protection The socket/breaker/relay should automatically switch of when a pre-defined amount of Amperes is being used Built in Pulsed outputs, 1 x Fixed & 1 x Configurable
