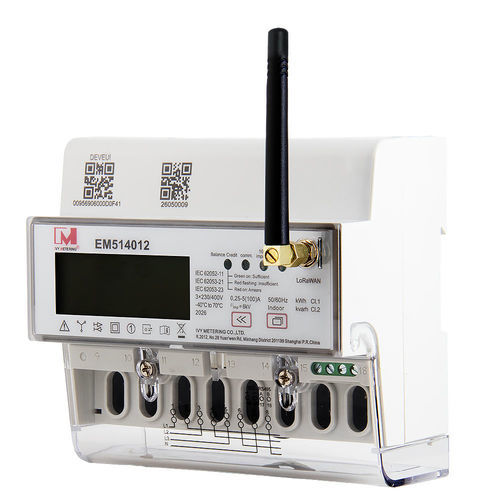

Three-phase electric energy meter EU868mMHz

DIN railwith LCD displaysmart

This is a three-phase LoRaWAN smart meter. The meter supports TTL local communication and LORA WAN remote communication, modbus protocol, communication frequency band EU868MHz, and built-in relay. It can realize local relay status setting through TTL communication, or remote control relay on-off through lorawan communication, and realize remote meter reading. It is widely used in household and commercial power distribution systems. Products Description This is a three-phase smart electricity meter, which supports LoRaWAN communication, has built-in relay, can be connected with intelligent equipment, and can realize remote meter reading, remote control, etc. The meter has a visual LCD display, which can measure voltage, current, power, electricity quantity, frequency, power factor. The meter can be easily installed by using the guide rail installation method Features (1)Measurement of bi-directional (forward&reverse) energy, active and reactive energy, voltage,current, active power, frequency, power factor, MD (Max Demand) (2)LoRa Communication LoRaWAN Protocol；Regional Frequency Band: EU868/433MHz, US915MHz, AU915MHz, AS923MHz, RU864MHz, KR920MHz, IN865MHz (3)Two display modes: data scroll display or page turning by pressing button (4)Support setting parameters and reading data remotely (5)IP51 indoor protection (6)Enhanced signal through optional based/stick type antenna (7)Built-in Latching Relay Technical Parameters Impulse constant - 1600imp/kWh LCD display - LCD5+1 Operation temp. - -20~+70℃ Relative humidity - <95% Ref. frequency - 50Hz Accuracy class - Cl.1 Starting current - 0.4%/Ib(CI.1) Load control - Built-in 80A magnetic latching relay Power consumption - ≤ 1W,<10VA
