Pulse totalizer counter 800SC06P

6-digit7-digitmechanical

Product details

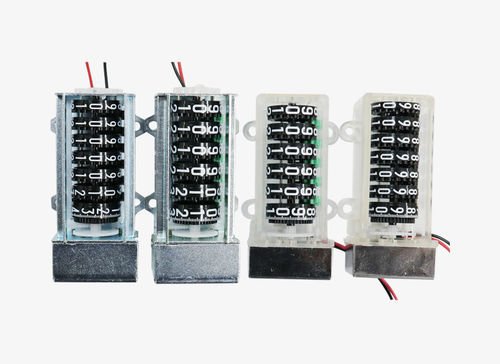

The 800 series electric meter mechanical counter is an economical electromechanical counting unit designed for use in energy meters. Available in plastic or metal versions. Key characteristics include a 6- or 7-digit black character wheel displaying 0–9, a 200:1 number ratio, long service life and typical driving voltage of 3.0–5.5 V.

Main Specifications and Technical Parameters

• Display digits: 6-digit black character wheel. The wheel displays 0-9.
• Number ratio: 200:1
• At 5V ±0.3V: maximum frequency 10 Hz; minimum pulse width 50 ms
• Life: ≥2×10^7 driving pulses
• DC impedance (20°C): 550 Ω ±50 Ω
• With character wheel protection cover
• Total exposed lead wire length: 125 ±5 mm

Product Application

• Multi-functional energy meter
• Prepayment energy meter
• Reactive energy meter
• Watt-hour meter
• Multi-rate watt-hour meters
• Maximum demand energy meter
• Standard electric energy meter

Technical specifications

• Model: 800SC06P
• Display: 6-digit (option 7-digit) black character wheel, characters 0-9
• Number ratio: 200:1
• Driving voltage: generally 3.0-5.5 V
• Operating at 5V ±0.3V: max frequency 10 Hz; minimum pulse width 50 ms
• Mechanical life: ≥2×10^7 driving pulses
• DC impedance (at 20°C): 550 Ω ±50 Ω
• Protection: character wheel protection cover included
• Lead wires: total exposed length 125 ±5 mm
• Material options: plastic or metal versions available
