AC electromechanical relay IM1202T UC23 Form B3 Form Acompact
Add to favorites
Compare this product
Characteristics
- Control voltage
- AC
- Contact configuration
- 3 Form A, 3 Form B
- Features
- compact
- Network
- three-phase
- Mounting
- panel-mount
- Function
- power
- Contact material
- silver tin oxyde
- Other characteristics
- high power, latching, high-reliability
- Switching current
120 A
- Output voltage
250 V
- Width
47 mm
(1.85 in)
Description
Product Overview

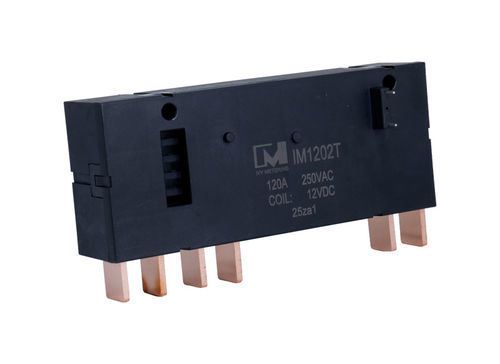

The IM1202T 120A 3-phase pulse latching relay is a low-power control device engineered for high-current switching applications. It is pulse-driven — consuming energy only during the switching instant — and holds its last position via an internal permanent magnet, eliminating the need for continuous coil power. The relay is suitable for metering control, industrial panels and smart-grid equipment where reliable, low-energy contact switching is required.
Model and Key Features
Product Parameters
Technical Specifications
The IM1202T 120A 3-phase pulse latching relay is a low-power control device engineered for high-current switching applications. It is pulse-driven — consuming energy only during the switching instant — and holds its last position via an internal permanent magnet, eliminating the need for continuous coil power. The relay is suitable for metering control, industrial panels and smart-grid equipment where reliable, low-energy contact switching is required.
Model and Key Features
- Model: IM1202T (120A 3-phase latching relay)
- Three-pole contact for independent three-way control
- Maximum switching current: 120A — built for heavy loads
- Pulse-driven coil with low power consumption (drive only during switching)
- High shock resistance and designed for reliable long-term operation
- Complies with IEC 62052-31:2020 UC2
- Available custom assemblies: flexible wire, copper straps, or integrated shunt options
- Typical applications: energy meters, industrial control, PDU, control panels, lighting control, smart grid systems
Product Parameters
- Rated load: 120A @ 250VAC
- Contact form: 3A / 3B
- Rated coil consumption: 5.0 / 10.0 W (30 ms)
- Dielectric strength: 4 kV
- Compact dimensions: 115 × 47 × 26 mm
- Contact material: AgSnO2
- Max. switching power: 30000 VA
- Contact resistance: ≤ 1.0 mΩ
- Pick-up time: 30 ms
- Release time: 30 ms
- Electrical endurance: 10000 cycles
- Mechanical endurance: 100000 cycles
- Temperature rise: ≤ 55 K
- Ambient temperature: -40°C to 85°C
- Ambient humidity: 45% to 95% RH
Technical Specifications
- Rated load: 120A @ 250VAC
- Contact form: 3A / 3B
- Rated coil consumption: 5.0 / 10.0 W (30 ms)
- Dielectric strength: 4 kV
- Dimensions: 115 × 47 × 26 mm
- Contact material: AgSnO2
- Max switching power: 30000 VA
- Contact resistance: ≤ 1.0 mΩ
- Pick-up / release time: 30 ms / 30 ms
- Electrical endurance: 10000 cycles
- Mechanical endurance: 100000 cycles
- Temperature rise: ≤ 55 K
- Operating temperature range: -40°C to 85°C
- Operating humidity range: 45% to 95% RH
