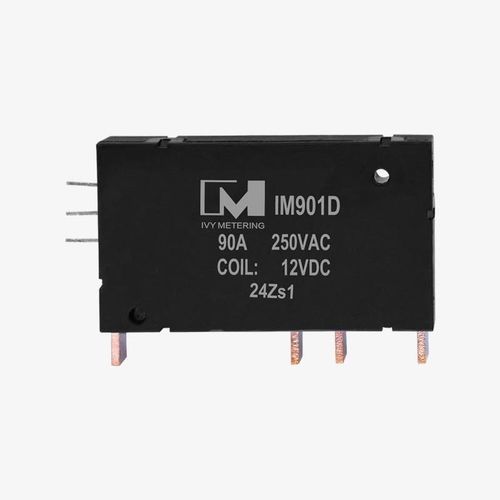

DC electromechanical relay IM901D

12VDCDPDTcompact

Product Introduction
IVY Metering designs and manufactures electromagnetic latching relays for single-, two- and three-phase switching. The IM901D is a compact, polarized bistable (magnetic latching) dual-pole relay developed for energy management applications such as load control, supply control and prepayment systems. The relay is highly configurable with options for terminal arrangements; shunts and current transformers can be supplied to special order.

IM901D Product Features

• Dual-pole magnetic latching relay (PNNP type)
• Maximum contact switching capacity: 90 A at 250 VAC
• Compliant with IEC 62052-31:2020 UC2
• Low contact resistance (100% tested)
• Compact size; instantaneous make and break
• Custom assemblies available with flexible wire, copper straps and/or integrated shunt
• Impulse excitation only required; supports single or double coil excitation
• Cost-effective: one 2-pole IM901D can replace two 1-pole relays

Product Dimension
Dimensions available on request; refer to the datasheet for detailed measurements.

Product Application

• Smart meters
• EV chargers
• Compound switches
• Lighting control systems
• Industrial automation

Specifications

• Model: IM901D
• Type: Dual-pole magnetic latching relay (PNNP type), polarized bistable
• Contact arrangement: DPDT (2-pole)
• Maximum contact switching capacity: 90 A, 250 VAC
• Coil voltage: 12 VDC (impulse excitation; single or double coil supported)
• Standards: IEC 62052-31:2020 UC2
• Contact resistance: low (100% tested)
• Mounting: PCB
