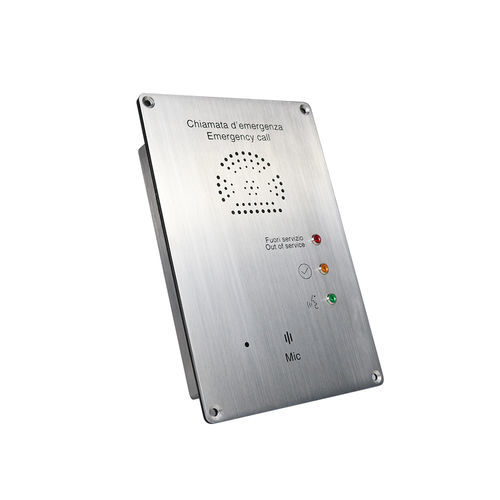

Audio intercom

emergencyVoIPsteel

- To broadcast live announcements to passengers via loudspeakers distributed along the train. - To manage the onboard call between driver and passengers who request assistance (by Passenger Emergency Intercoms) or activate an emergency pad (by Passenger Alarm Intercoms). - To manage the on-board call between driver’s cabins. The Railways on Board Passenger Announcement and Emergency Call System allows: The train emergency call system is crucial for ensuring passenger safety, quickly responding to emergencies, and enhancing service quality. It allows passengers to immediately contact staff in emergencies, ensuring swift issue resolution. This system is an essential part of modern train operations. Technical Specifications: - Activation: External activation - Status LEDs: Red, Yellow, and Green - Technology: Digital – VOIP/SIP - Communication: Full duplex 2-way hands-free communication - Audio codes: G.711, G.722, G.729 - IP Protocols: IPv4, DHCP, SIP - Plate: Steel, customizable with different colours and screen printing - Power supply: Power over Ethernet IEEE 802.3 af (PoE) - Outline Dimensions: 200.00 (H) x 132.5 (V) x 42 (D) [mm] - Weight: 1.5 kg - Power Consumption Max: 12 W - I/O: 1 x Ethernet connector (M12 D-Coded, Female), 1 x Male Molex Minifit 2×2 - Operating Temperature: -25°C/+55°C (EN50155 class OT1 ST1) - IP: IP32 (front) - Compliance: EN 50155 Railways Applications – Electronic Equipment used on Rolling Stock; EN 45545 Railway applications – Fire protection on railway vehicles; CE Certification; RoHS Compliant; REACH Compliant; ISO 7000 – Graphical symbol for use on equipment
