Centrifugal pump HSC³waterelectricindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Domain
- industrial
- Applications
- lubrication, suction
- Material
- steel
- Other characteristics
- mechanical, double, open, seal, base-mounted
- Flow
Max.: 65,000 us gal/min
(246,051.76596 l/min)Min.: 0 us gal/min
(0 l/min)
Description

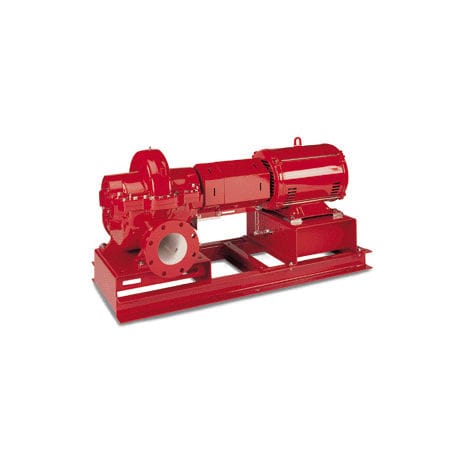

Double-suction, base-mounted Series HSC³ pumps are available in 2” through 10” sizes. Motor sizes through 300 HP. Flows to 6500 GPM and heads to 400 feet. Bronze-fitted construction with a maximum working pressure of 175 psig.
The HSC³ features internally self-flushing mechanical seals for maximum lubrication, debris removal and heat dissipation. The internally flushed seals allow for a shorter shaft for reduced deflection for longer seal life. Closed-end steel baseplate with full seam welds for strength and an open top for easy grouting. The pump bearings and mechanical seals can be serviced without disturbing the upper casing half, piping connections or electrical motor connections. An ANSI-OSHA-compliant coupling guard shields the flexible coupler.
Catalogs
No catalogs are available for this product.
See all of Jabsco‘s catalogsOther Jabsco products
Pumps & Packaged Pumping Systems
