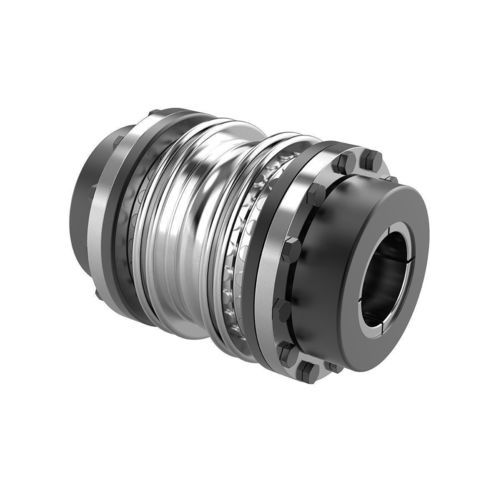

Torsionally-rigid flexible shaft coupling KXLmetal bellows3-parttaper sleeve
Add to favorites
Compare this product
Characteristics
- Type
- torsionally-rigid flexible
- Construction
- metal bellows, 3-part, taper sleeve
- Installation system
- flange
- Torque
Min.: 9,000 Nm
(6,638.059343 ft.lb)Max.: 50,000 Nm
(36,878.107464 ft.lb)- Rotational speed
Min.: 2,000 rpm
(12,566.3706 rad.min-1)Max.: 6,000 rpm
(37,699.1118 rad.min-1)
Description
• Torque range: 4.000 - 70.000 Nm
• 3-parted construction- easy to fit - variable in use
• flange hub or conical ring hub
• Shaft diameter: 60 - 220 mm
• backlash free – exact torque transfer
• high torsional stiffness - low moments of inertia
• high tolerance of shaft displacements
