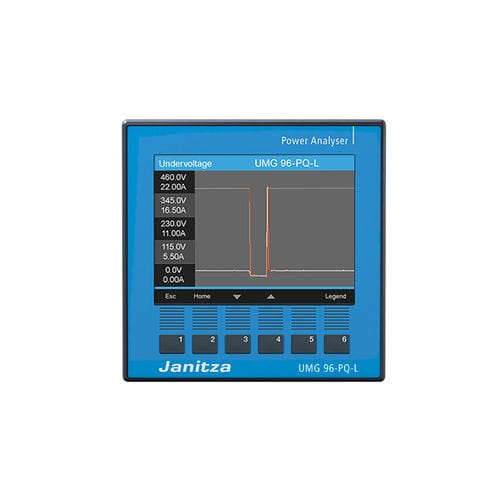

Power quality monitoring device UMG 96-PQ-L

temperaturepowerresidual current

Full-wave events directly on the display Whether power quality analysis, residual current monitoring or temperature monitoring, the UMG 96-PQ-L offers the right functions for every application. With the UMG 96-PQ-L, it is now possible to cost-effectively ensure complete power quality transparency at every level and thus avoid system failures. Full-wave event measurements can be shown and analysed directly on the display. In addition, the modular network offers a large memory, which thanks to a special data compression method, ensures several years’ worth of storage. Memory partitioning preserves the long term storage for current and power data and allows the combination of storing high-resolution power quality measurements. This storage partitioning helps extend the amount of data that is being stored at a higher performance while keeping costs of hardware low. All values can be conveniently displayed and graphically represented on the color graphic display. Simple modular expansion The device can be quickly and easily expanded with an Ethernet interface, 2 differential current inputs, a temperature input, and a 4th current input by means of a plug-on expansion module. When using the Ethernet module, there are also additional connection options for up to 30 simple MID energy meters as slave devices, e.g. of type B23 312-10J. Record temperature and monitor via integrated comparator Ethernet interface and Modbus gateway Residual current measurement or DC power measurement Neutral conductor measurement (I4 - current measurement) Power quality Harmonics current up to the 65th harmonic High sampling rate with 280 sampling points per full wave
