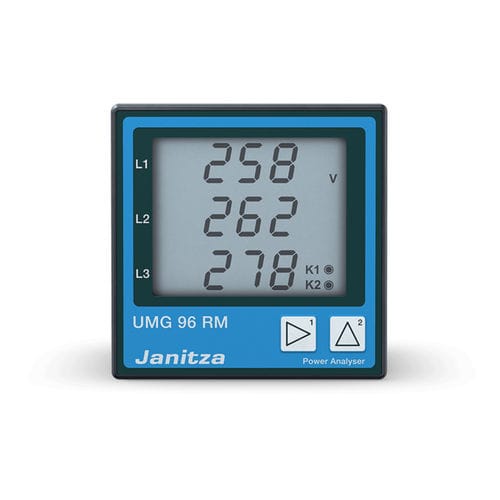

Measurement monitoring device UMG 96RM-PN

temperaturepowerresidual current

Capturing measured data using profinet The UMG 96RM-PN power analyzer is used to determine the voltage quality and measures harmonics up to the 40th harmonic. It has two digital outputs as well as three further digital inputs or outputs, which can be determined optionally. In addition, two further inputs are included (analog, temperature or residual current input (RCM)). Main features of the UMG 96RM-PN 6 current channels Current measurement channel for phase L1 Current measurement channel for phase L2 Current measurement channel for phase L3 Current measurement channel for neutral conductor 2 x RCM (optional thermistor input) Interfaces 2 Ethernet interfaces that conform to PROFINET and integrated switch to set up line topologies Additional RS485 interface 2 digital outputs (pulse output, switch output, threshold value output, logic output) 3 additional digital inputs/outputs REST interface Software interface to query measured values via an HTTP protocol, e.g. to include the measured data in higher-level software solutions (GLT, PLC, SCADA, etc.) Machine-machine communication thanks to a simple architecture model RCM (residual current) Fire and device protection System safety Fulfillment of regulations Identifying insulation faults Safeguarding system availability
