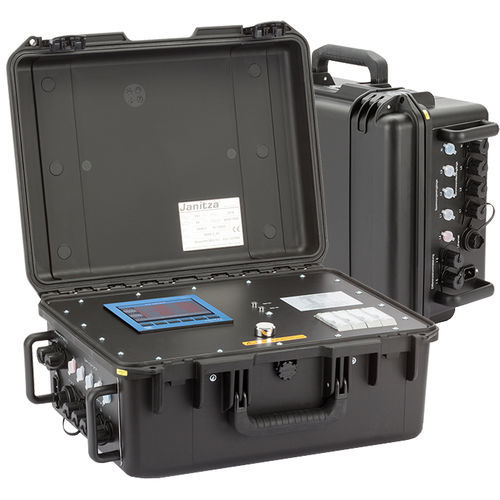

Power measuring device MRG Flex

portablecompact

The MRG 512-PRO PQ Flex measures harmonics up to the 63rd harmonic as well as flicker and short-time interruptions. Applications of the MRG 512-PRO PQ Flex are e.g. high-quality network analyses on class A level (IEC 61000-4-30), validation of device accuracy, and many more. The grid visualization software GridVis®-Basic is available for download free of charge. Due to a three-hour UPS buffering, there are no gaps in the measurement in case of power failure. Furthermore, the device has PLC functionality. The MRG 96RM-E RCM Flex measures harmonics up to the 40th harmonic. Possible applications are e.g. the analysis of electrical disturbances in case of grid problems, high-quality comparison measurements of energy meters and meters or the acquisition of residual currents via external current transformers. GridVis®-Basic is also available here free of charge. Advantages Flexible measurement of voltage quality and residual current Inexpensive, robust and compact power analyzers Easy operation and fast integration of the measurement cases High measuring range of 100-4000 A due to Rogowski current transformers with measuring range switching Acquisition of all voltage quality parameters (harmonics, short-time interruptions, asymmetries, ...) - depending on model Remote access via Ethernet and embedded web server GridVis® PQ analysis software Standard PQ reports, depending on version: EN 50160, IEEE519, ITIC, IEC 61000-2-4 Cost center report Large 256 MB internal memory for measurement data recording
